Navigating the Depths: Overmolded M22 Connectors for Commercial Shipbuilding

The global maritime industry relies on massive commercial vessels—including LNG carriers, container ships, and offshore supply vessels—to keep the world economy moving. The engineering inside these ships is staggering. To operate massive ballast water treatment systems, heavy deck winches, and engine room thruster controls, shipbuilders require connectors that can deliver extreme amperage and voltage. The robust M22 circular connector is the maritime standard for these high-power applications.

However, the environment aboard a commercial vessel is relentlessly hostile to high-voltage electronics. Connectors are continuously exposed to highly corrosive saltwater spray, engine room oil vapor, and the toxic sludge found in ship bilges. If a standard, field-wireable M22 power connector leaks, the resulting high-voltage short circuit can spark an engine room fire or cause a critical propulsion failure at sea. To guarantee absolute safety and continuous power delivery in marine environments, naval architects rely on the seamless, liquid-tight protection of YCZXF’s overmolded (injection-molded) M22 waterproof cable assemblies.

The High-Voltage Threat on the High Seas

Routing high-power cables on a commercial vessel involves battling severe chemical, aquatic, and electrical hazards:

• Saltwater Ingress and High-Voltage Arcing: Marine environments are saturated with conductive saltwater. If this moisture penetrates the mechanical seams of a standard M22 connector, it bridges the high-power pins. This causes instant electrical arcing, melting the connector and posing a severe fire hazard.

• Corrosive Bilge Fluids and Oil Sludge: Cables routed near the ship’s keel or engine room are constantly exposed to caustic bilge water, hydraulic fluids, and hot engine oil. These chemicals rapidly degrade standard commercial PVC, causing the cable jackets to swell and crack.

• High-Pressure Washdowns and Storms: Deck-mounted equipment, such as heavy winches and crane controls, face driving hurricane rain, crashing rogue waves, and high-pressure maintenance washdowns, demanding an absolute, impenetrable liquid barrier.

The YCZXF Marine Power Shield

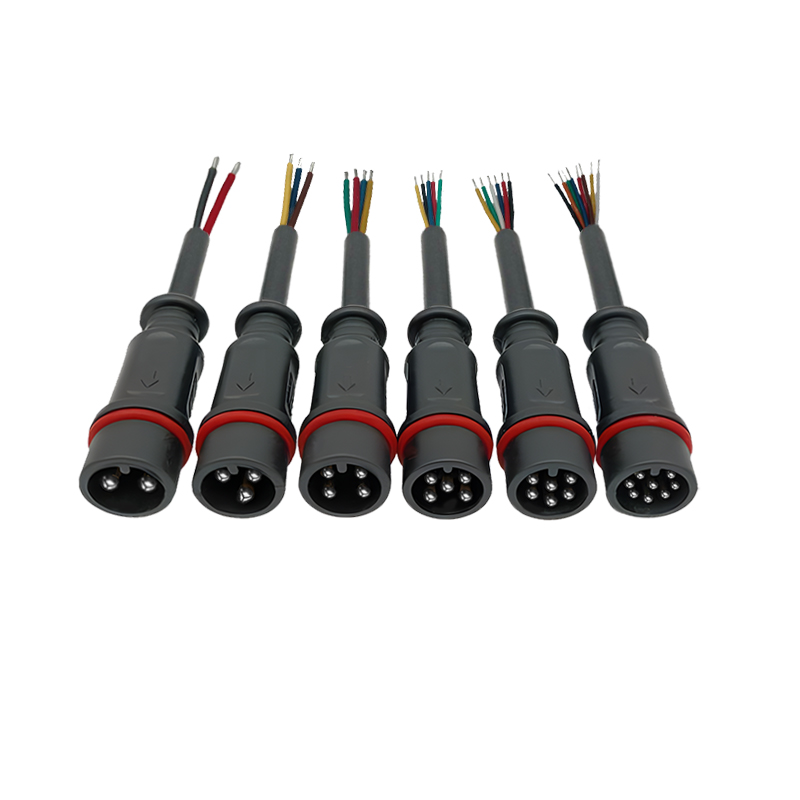

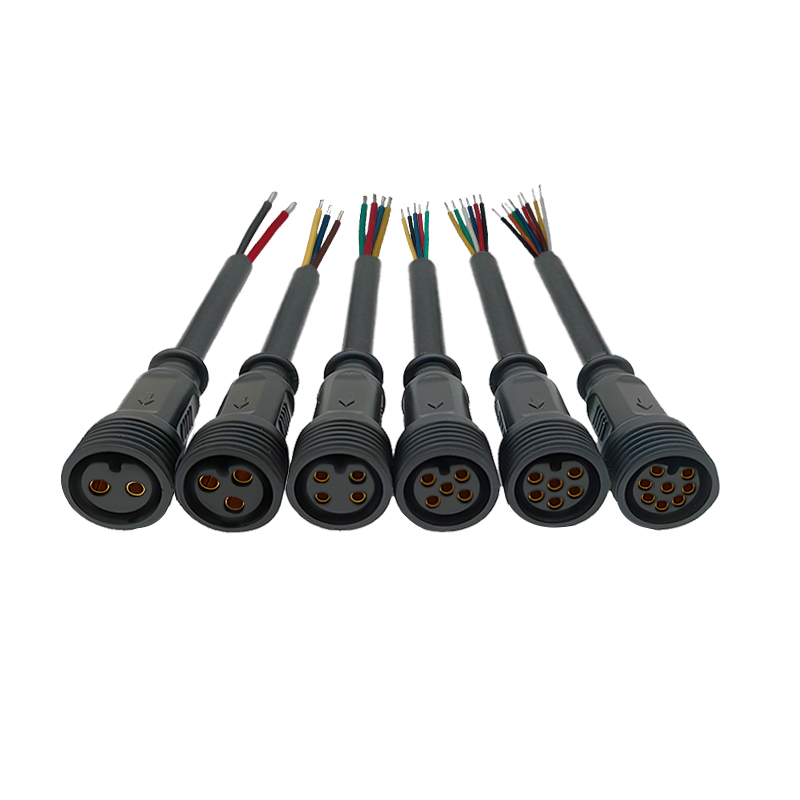

YCZXF custom-engineers heavy-duty M22 cable assemblies that perfectly isolate your high-voltage maritime hardware from corrosive saltwater and deep-water submersion.

1. A Monolithic, Crevice-Free ExteriorBy injecting a specialized, marine-grade thermoplastic directly over the large M22 connector core and thick power cable jacket, we create a single, continuous block of material. Without exposed mechanical threads or separate backshells, there are absolutely no crevices for corrosive salt crystals or oil sludge to accumulate, completely eliminating the risk of internal liquid wicking.

2. Premium Saltwater and Oil ResistanceWe strictly avoid standard PVC for marine power lines. YCZXF selects premium, industrial-grade Polyurethane (PUR) and specialized heavy-wall thermoplastic blends. These jackets are engineered specifically to resist prolonged exposure to hyper-saline ocean water, heavy marine diesel, and synthetic engine oils without degrading.

3. Absolute IP68/IP69K Subsea SealingThe overmolding process chemically bonds the outer shell to the thick power cable, creating an impenetrable IP68/IP69K hermetic seal. Whether your M22 connectors are powering a ballast pump deep in a flooded bilge or subjected to crashing waves on the upper deck, the YCZXF seal keeps your high-voltage lines completely dry, safe, and operational.

Secure the Vessel

In commercial shipping, power failures at sea lead to catastrophic delays and severe maritime emergencies. Do not let a vulnerable, leaking power plug compromise your vessel. Protect your marine infrastructure with the uncompromising, saltwater-resistant architecture of YCZXF injection-molded M22 waterproof connectors.
