Powering the Process: Overmolded M20 Connectors for Industrial Chemical Mixing

In large-scale chemical manufacturing, pharmaceuticals, and bulk fluid processing, the equipment required to move and mix heavy liquids is massive. Industrial processing skids rely on high-torque agitator motors, heavy-duty diaphragm pumps, and high-wattage inline heaters. These machines require significantly higher amperage than a standard M12 sensor connector can provide, making the robust M20 circular connector the industry standard for high-power and hybrid (power + control) transmission.

However, delivering high current in a chemical processing plant is incredibly dangerous. The environment is continuously saturated with highly corrosive acidic vapors, caustic washdowns, and overflowing chemical sludge. If a standard field-wireable M20 connector leaks, the resulting high-voltage short circuit can spark a catastrophic facility fire or destroy a hundred-thousand-dollar agitator motor. To guarantee absolute safety and continuous power delivery in toxic environments, chemical engineers rely on the seamless, liquid-tight protection of YCZXF’s overmolded (injection-molded) M20 waterproof cable assemblies.

The High-Voltage Threat in the Chemical Plant

Routing high-power cables in a chemical mixing facility involves battling severe chemical and electrical hazards:

• Acidic Vapors and Electrical Arcing: Processing tanks emit harsh vapors like sulfuric acid and sodium hydroxide. These vapors rapidly corrode the thick copper pins inside standard M20 plugs. Corroded high-power pins create electrical resistance, which leads to intense heat buildup, arcing, and eventually, connector melt-downs.

• Capillary Action under High Amperage: The thermal expansion and contraction of high-current cables create microscopic voids inside cheap mechanical connectors. Corrosive liquids are drawn into these voids via capillary action, crossing the high-voltage phases and causing explosive short circuits.

• High-Pressure Chemical Washdowns: Between chemical batches, the entire processing skid is subjected to high-pressure washdowns using aggressive sanitizers, demanding an absolute, impenetrable liquid barrier.

The YCZXF High-Power Chemical Shield

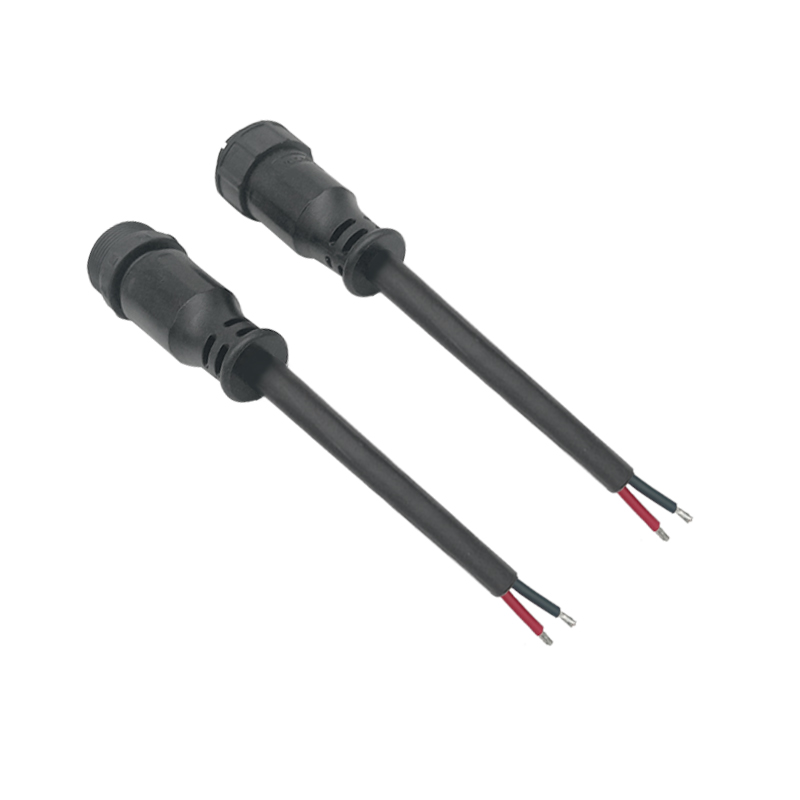

YCZXF custom-engineers heavy-duty M20 cable assemblies that perfectly isolate your high-voltage chemical hardware from corrosive vapors and liquid floods.

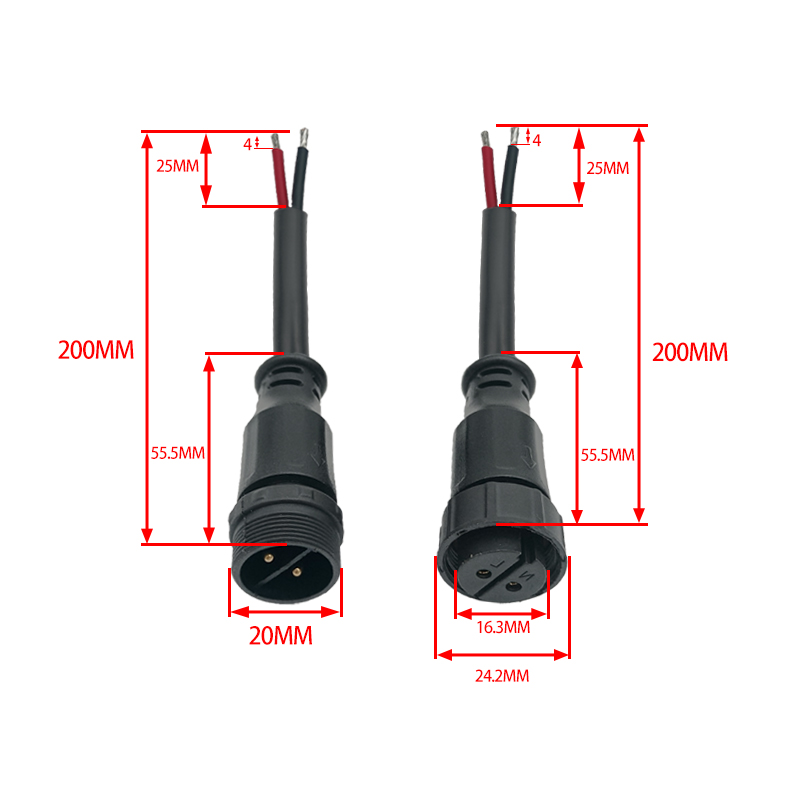

1. A Monolithic, Crevice-Free ExteriorBy injecting a specialized, chemical-resistant thermoplastic directly over the large M20 connector core and thick power cable jacket, we create a single, continuous block of material. Without exposed mechanical threads or separate backshells, there are absolutely no crevices for corrosive chemical salts or liquids to accumulate, completely eliminating the risk of internal liquid wicking.

2. Premium Acid and Caustic ResistanceWe strictly avoid standard PVC for heavy industrial power lines. YCZXF selects premium, industrial-grade Polyurethane (PUR) and specialized heavy-wall thermoplastic blends. These jackets are engineered specifically to resist prolonged exposure to aggressive industrial solvents, caustic sodas, and synthetic oils without swelling or turning brittle.

3. Absolute IP68/IP69K Power SealingThe overmolding process chemically bonds the outer shell to the thick power cable, creating an impenetrable IP68/IP69K hermetic seal. Whether your M20 connectors are powering a massive mixing motor directly above a steaming chemical vat or subjected to direct high-pressure hose-downs, the YCZXF seal keeps your high-voltage lines completely dry and safe.

Secure Your Process Power

In industrial chemical manufacturing, power failures lead to ruined batches and severe safety hazards. Do not let a vulnerable, leaking power plug cause a catastrophic facility shutdown. Protect your high-power infrastructure with the uncompromising, chemical-resistant architecture of YCZXF injection-molded M20 waterproof connectors.
