Defending the Finish: Overmolded Connectors for Automotive Paint Booth Automation

The automotive and aerospace manufacturing sectors rely on fully automated paint booths to achieve flawless, high-volume surface coatings. These complex systems utilize multi-axis robotic sprayers, precision fluid dosing valves, and optical sensors to apply primers, base coats, and clear coats with microscopic accuracy.

However, the environment inside a commercial paint booth is highly volatile and chemically aggressive. Electronic infrastructure is continuously exposed to heavy paint overspray, baking heat, and highly corrosive industrial solvents. When standard electrical connectors fail, a robotic sprayer can misfire, ruining the finish on a high-value vehicle chassis and halting the entire production line. To ensure flawless operation in these toxic environments, manufacturing engineers specify the seamless, solvent-resistant protection of YCZXF’s overmolded (injection-molded) waterproof cable assemblies.

The Toxic Chemistry of the Paint Line

Wiring sensors and robotic arms in a commercial paint facility involves battling severe chemical and physical hazards:

• Aggressive Industrial Solvents: Paint lines utilize harsh thinning and cleaning chemicals, including MEK (Methyl Ethyl Ketone), Xylene, and Acetone. These highly aggressive solvents rapidly dissolve standard commercial PVC plastics and degrade the rubber O-rings found in traditional mechanical connectors.

• Paint Overspray and Curing: Fine paint particulate naturally coats every surface inside the booth. If overspray works its way into the mechanical seams of a standard connector, it will eventually cure and harden, making maintenance impossible and breaking the seal.

• High-Pressure Chemical Washdowns: Between color changeovers, robotic sprayers and booths undergo intense, high-pressure chemical washdowns. Connectors must provide an absolute liquid barrier to prevent short circuits from high-velocity solvent spray.

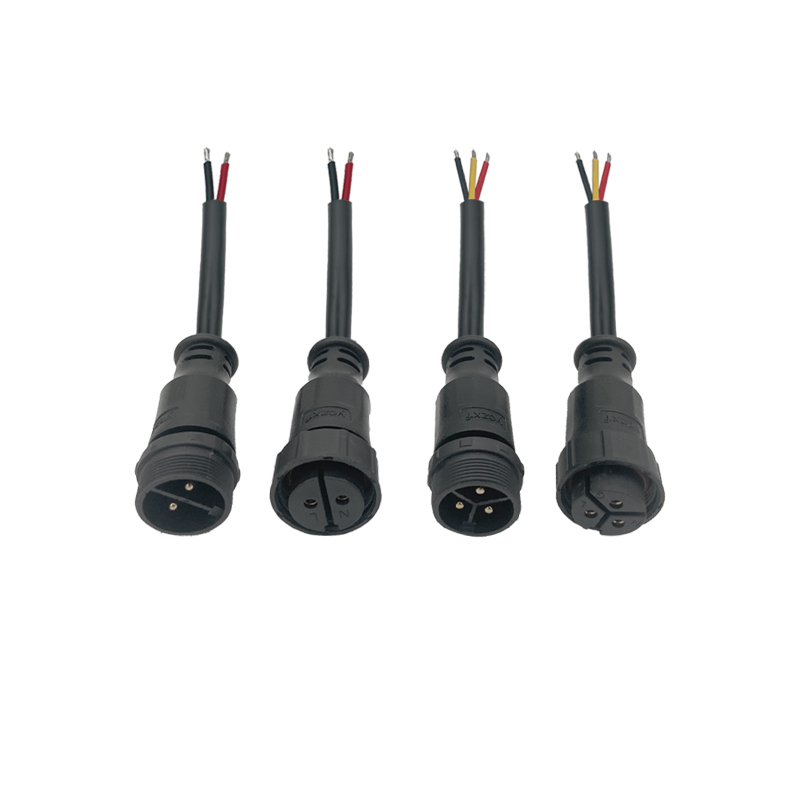

The YCZXF Injection-Molded Chemical Shield

YCZXF custom-engineers cable assemblies that completely isolate your automated coating hardware from corrosive solvents and paint ingress.

1. A Monolithic, Crevice-Free ExteriorBy injecting a specialized, chemical-resistant thermoplastic directly over the connector core and cable jacket, we create a single, continuous surface. Without exposed threads or separate mechanical backshells, there are absolutely no crevices for curing paint or volatile solvents to accumulate. This ultra-smooth profile makes routine chemical wipe-downs incredibly fast and effective.

2. Premium Solvent-Resistant MaterialsWe strictly avoid standard PVC for coating applications. YCZXF selects premium, industrial-grade Polyurethane (PUR) and specialized thermoplastic blends engineered specifically to resist prolonged exposure to aggressive paint thinners, industrial degreasers, and high ambient baking temperatures without turning brittle or swelling.

3. Absolute IP68 Liquid and Vapor SealingThe overmolding process chemically bonds the outer shell to the cable, creating an impenetrable IP68 hermetic seal. Whether your connectors are mounted directly on a fast-moving robotic spray wrist or near a high-pressure solvent purge valve, the YCZXF seal completely blocks moisture and toxic vapors from reaching the critical electrical contacts.

Secure the Perfect Finish

In automated manufacturing, a flawless paint finish dictates the final product's value. Do not let a vulnerable wiring harness cause a catastrophic robotic failure. Protect your coating infrastructure with the uncompromising, solvent-resistant architecture of YCZXF injection-molded waterproof connectors.
