Streamlining the Line: Overmolded M12 Y-Splitters for Poultry Processing

Modern poultry processing and high-speed egg sorting facilities are incredibly sensor-dense. A single automated conveyor line utilizes hundreds of proximity switches, optical sensors, and pneumatic valve manifolds to grade, sort, and package delicate products at blistering speeds.

To prevent the facility from being overwhelmed by a massive web of individual cables running all the way back to the central PLC, automation engineers use M12 Y-Splitters and T-Connectors to daisy-chain sensors directly in the field, combining two sensor signals into one trunk cable. However, a poultry plant is a relentlessly wet environment. Equipment is subjected to daily high-pressure washdowns using caustic foaming agents and scalding water. The actual "Y" junction of a standard splitter is highly vulnerable to capillary water ingress. To guarantee sanitary compliance and eliminate electrical shorts at the junction, food-tech engineers specify the seamless, void-free architecture of YCZXF’s Overmolded M12 Y-Splitters.

The Junction Vulnerability in Washdown Environments

Consolidating sensor wiring in a meat or poultry facility involves battling severe fluid hazards at the cable junction:

• Capillary Action at the Split: Cheap M12 splitters are often assembled using mechanical snap-together plastic housings. When blasted with 1,500 PSI hot water, the mechanical seams open slightly. Water is sucked directly into the central wire splice via capillary action, instantly short-circuiting two sensors at once.

• Biological Traps in the Housing: In poultry processing, salmonella and organic fats easily accumulate in the tiny crevices of standard, multi-piece plastic splitter housings, making complete CIP (Clean-In-Place) sanitization impossible.

• Chemical Embrittlement: Harsh alkaline detergents rapidly degrade standard commercial PVC, causing the Y-junction to turn brittle and crack open under the weight of hanging cables.

The YCZXF Hygienic Consolidation Solution

YCZXF custom-engineers heavy-duty M12 Y-Splitters that completely isolate your critical sensor junctions from aggressive cleaning protocols and bacterial growth.

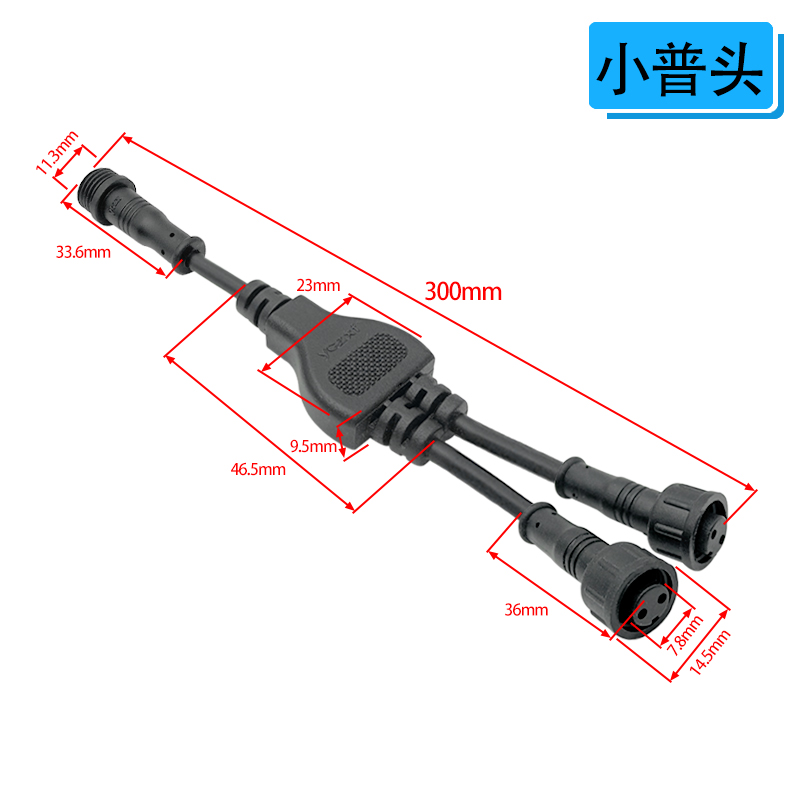

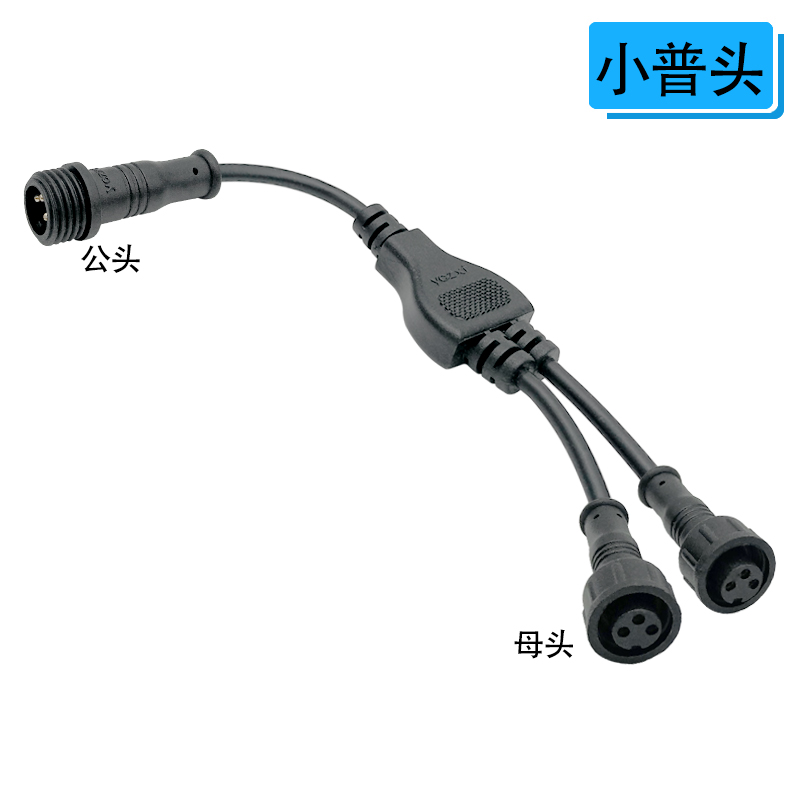

1. A Monolithic, Void-Free JunctionWe completely reject snap-together housings. YCZXF utilizes a high-pressure injection molding process to inject food-grade thermoplastic directly over the internal wire splices. This creates a solid, continuous block of material with absolutely zero internal air voids. It is physically impossible for capillary action to draw water into a YCZXF splitter, even under intense steam pressure.

2. Crevice-Free Sanitary ProfileBecause the entire Y-splitter is a single overmolded piece, there are no mechanical seams, screws, or ridges. The ultra-smooth profile ensures there are zero crevices for poultry fats or bacteria to accumulate, allowing your sanitation crew to effortlessly spray down the sensor network.

3. Absolute IP69K Liquid SealingThe overmolding process chemically bonds the Y-junction to the PUR cable jackets, creating an impenetrable IP69K hermetic seal. Whether your splitters are mounted directly beneath a wet egg-washing station or subjected to foaming caustic sprays, the YCZXF seal keeps your consolidated I/O signals completely dry and operational.

Secure Your Processing Yields

In poultry processing, a short-circuited sensor junction can stall a sorting line, backing up thousands of highly perishable products. Do not let a cheap, leaking splitter compromise your facility. Consolidate your sensor networks safely with the uncompromising, hygienic architecture of YCZXF overmolded M12 splitters.
