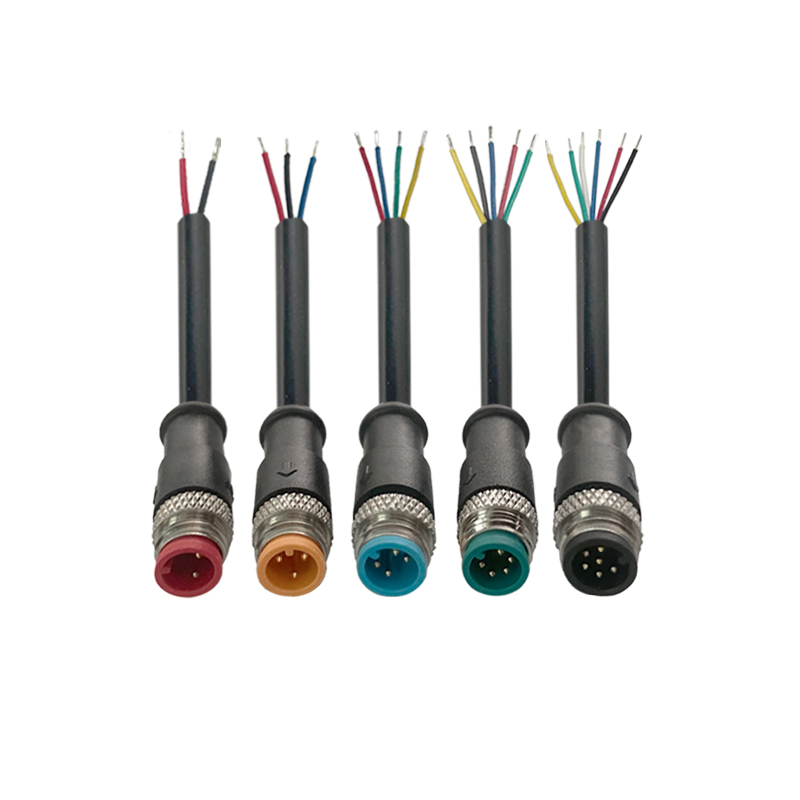

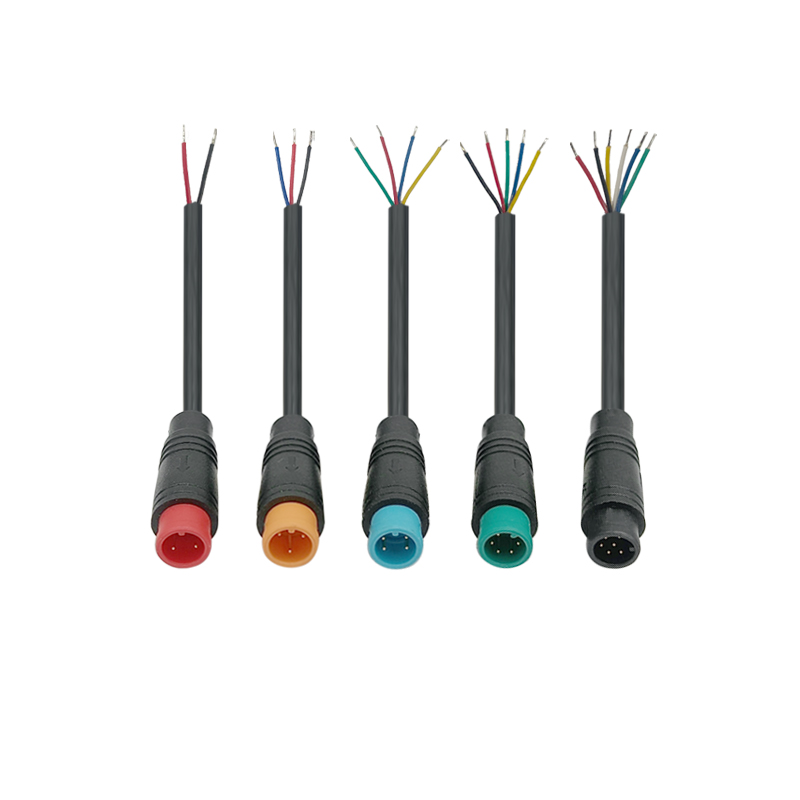

Precision in Tight Spaces: Overmolded M8 and M9 Connectors for Automated Packaging

The pharmaceutical and high-speed food packaging industries operate on extreme precision. To sort, fill, and seal thousands of vials or blister packs per minute, these machines rely on hundreds of miniaturized photo-eyes, proximity switches, and micro-pneumatic valves. Because engineering space on a high-speed packaging chassis is incredibly limited, equipment designers universally rely on the ultra-compact footprint of M8 and M9 circular connectors.

However, the environment inside a pharmaceutical or food packaging facility is highly regulated and relentlessly sanitized. These tiny electronic connections are subjected to high-pressure washdowns, aggressive sanitizers, and dense chemical vapor. Standard field-wireable M8 and M9 connectors are inherently fragile; their microscopic threads and tiny rubber seals easily fail under liquid pressure. To achieve zero-defect automation in cramped, sanitized environments, packaging engineers specify the seamless protection of YCZXF’s overmolded (injection-molded) M8 and M9 cable assemblies.

The Vulnerability of Miniaturized Sensors

Wiring micro-sensors in a washdown facility involves battling severe mechanical and chemical hazards:

• Micro-Thread Failure: Standard field-wireable M8 and M9 connectors rely on exceptionally small plastic or metal threads. During high-pressure CIP (Clean-In-Place) washdowns, water easily forces its way past these microscopic seams, instantly short-circuiting the tiny sensor pins.

• Aggressive Chemical Sanitizers: Packaging lines are heavily sterilized using vaporized hydrogen peroxide (VHP), caustic soda, and peracetic acid. These harsh chemicals rapidly dissolve standard PVC cable jackets and degrade tiny rubber O-rings.

• Biological Traps: In cleanroom environments, the tiny mechanical crevices of a standard M8/M9 locking nut act as microscopic breeding grounds for bacteria and biofilm, threatening entire batches of pharmaceutical product.

The YCZXF Miniaturized Washdown Solution

YCZXF custom-engineers ultra-compact M8 and M9 cable assemblies that completely isolate your micro-automation hardware from aggressive cleaning protocols.

1. A Monolithic, Crevice-Free Micro-ProfileBy injecting a specialized, food-grade thermoplastic directly over the M8/M9 connector core, we create a single, continuous surface. Without exposed microscopic threads or separate backshells, there are absolutely zero crevices for liquid or bacteria to accumulate. The ultra-smooth YCZXF profile allows high-pressure washdowns to sanitize the tiny connection points instantly.

2. Premium Chemical and Vapor ResistanceWe strictly avoid standard commercial plastics for cleanroom applications. YCZXF selects premium Polyurethane (PUR) and specialized thermoplastic blends engineered specifically to resist prolonged exposure to oxidative VHP gas, aggressive packaging sanitizers, and foaming detergents without turning brittle.

3. Absolute IP69K Liquid Sealing in a Tiny FootprintThe overmolding process chemically bonds the outer shell to the cable, creating an impenetrable hermetic seal. Despite their miniaturized size, YCZXF M8 and M9 connectors meet stringent IP68 and IP69K standards. Whether your micro-sensors are mounted directly beneath a liquid filling nozzle or subjected to direct high-pressure hose-downs, the seal completely blocks moisture from reaching the critical electrical contacts.

Secure Your Packaging Yields

In high-speed packaging, a single failed micro-sensor can result in thousands of misfilled products. Do not let a fragile, tiny connector cause a massive batch failure. Protect your packaging automation with the uncompromising, space-saving architecture of YCZXF injection-molded M8 and M9 waterproof connectors.
