Robust Power Delivery for Outdoor LED Systems: The Role of 4 Pin M8 Waterproof Connectors

Release time:2025-05-29

viewed:20

Modern outdoor LED lighting systems demand reliable power connections capable of withstanding harsh environmental conditions. From streetlights to architectural accent lighting, the 4 pin M8 waterproof connector has emerged as a preferred solution for secure power transmission in wet, dusty, or corrosive environments. These compact interconnects combine IP67/IP68 protection with multi-circuit functionality, making them ideal for contemporary LED installations requiring both power and control signal integration.

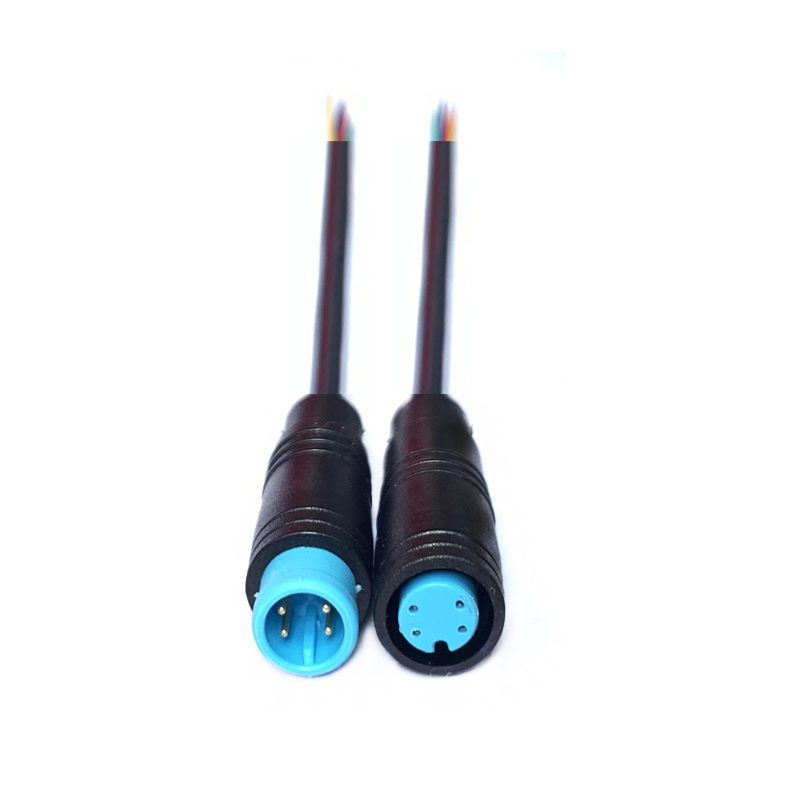

M8 4-core connecting cable waterproof connector

Core Applications

In landscape lighting systems,  4 pin M8 waterproof connector enable simultaneous power delivery (typically 24-48V DC) and dimming control through separate channels. Their threaded coupling mechanism prevents accidental disconnection from wind or vibration, while the integrated O-ring seals protect internal contacts from moisture ingress - a critical feature for fountain-side or pool-area lighting.


For high-power roadway LED fixtures, these connectors simplify maintenance through quick-disconnect functionality. Electricians can replace individual luminaires without rewiring entire circuits by utilizing the 4 pin M8 waterproof connector's color-coded terminals for safe polarity maintenance. The nickel-plated brass contacts ensure stable current transmission even when handling the 3-5A loads typical of 100W+ LED arrays.


Emerging smart lighting networks further benefit from the 4 pin M8 waterproof connector's capacity to carry both power and data signals. Two pins often handle the constant voltage supply (e.g., 36V DC), while the remaining pins manage DALI or 0-10V dimming protocols. This dual-purpose design reduces cable clutter in weatherproof junction boxes compared to using separate connectors for power and control.


As outdoor LED systems evolve toward higher efficiency and smarter controls, the  4 pin M8 waterproof connector will continue playing a pivotal role in reliable power distribution. Future developments may include integrated temperature sensors or quick-lock variants to further streamline field installations. For lighting designers and electrical contractors, specifying these robust interconnects ensures long-term performance in even the most demanding outdoor environments.
