Waterproof/Dustproof Connectors (IP Ratings) in Industrial Environments: The Critical Role of Connector Extension Cords in Harsh and Outdoor Applications

Release time:2025-05-09

viewed:54

In industrial environments, equipment stability and reliability are cornerstones of production safety. With the rise of industrial automation, outdoor facilities, and IoT devices, connector extension cords —serving as the "lifeline" for power and signal transmission—directly determine the survivability of equipment in harsh conditions due to their protective performance. This article explores the key applications and technical selection criteria for waterproof/dustproof connectors in industrial settings, based on IP (Ingress Protection) rating standards.

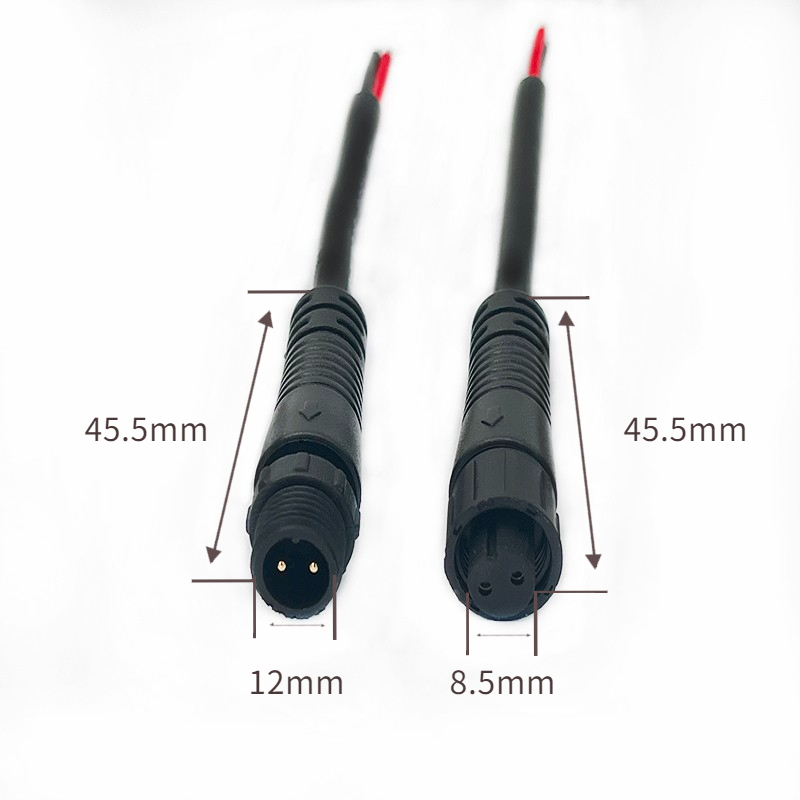

Rubber core head M12-2 core size connector extension cords

1. IP Ratings: The Benchmark for Industrial Connector Protection

The IP rating is an internationally recognized protection standard, comprising two digits: the first digit indicates dust resistance (0-6), and the second digit indicates water resistance (0-9), with higher numbers representing stronger protection. Examples include:

IP54: Dust-resistant (Level 5, limited ingress protection) + Splash-resistant (Level 4, withstands water splashes from all directions).

IP67: Completely dust-tight (Level 6) + Short-term immersion protection (Level 7, 30 minutes at 1-meter depth).

IP68: Completely dust-tight + Prolonged underwater protection (depth and duration defined by the manufacturer).

In industrial scenarios where dust, oil, rainwater, and even chemical corrosion are common, high IP-rated connectors effectively prevent short circuits, oxidation, and signal interference, significantly reducing equipment failure rates.



2. Applications of Connector Extension Cords in Industrial Scenarios

1. Outdoor Equipment and Automated Production Lines

In environments like open-pit mines and port machinery, IP65/IP66-rated connector extension cords excel in fully dustproof and high-pressure water jet resistance, handling sandstorms and heavy rainfall. For instance, power extension cords for outdoor surveillance cameras require IP66 to withstand strong water flow.

2. Humid and Corrosive Environments

In chemical plants or food processing facilities, connector extension cords frequently exposed to steam or acidic/alkaline liquids demand IP67/IP69K ratings (the latter withstands high-temperature, high-pressure sprays) and corrosion-resistant materials (e.g., silicone seals, stainless steel housings).

3. Submarine and Deep-Sea Equipment

Marine exploration devices or underwater robots rely on IP68 connectors. Their extension cords must pass rigorous immersion tests (e.g., continuous operation at 100-meter depths) and feature dual shielding to prevent signal attenuation.

4. High-Dust Environments

In cement plants or woodworking workshops, where dust easily clogs interfaces, IP5X-rated connector extension cords (e.g., IP54) block fine particles, mitigating fire risks caused by poor contact.


3. Selection Guide: Matching IP Ratings to Industrial Connector Extension Cords

Environmental Assessment:

Dust concentration: If particle size ≤1mm (e.g., metal shavings), select connectors with dust resistance ≥ Level 5.

Liquid type: IP44 suffices for rainwater, while corrosive liquids require IP67 or higher.

Balancing Performance and Cost:

Low-risk areas (e.g., indoor control cabinets) can use IP44 cords; high-risk zones (e.g., oilfield drilling platforms) require IP68.

Modular designs (e.g., detachable waterproof connectors) reduce costs by adapting to various cables.

Certifications and Testing Standards:

International certifications: IEC 60529 (global), GB/T 4208 (China), EN 60529 (Europe).

Testing methods: IPX5 (water jet test) validates spray resistance; IPX7 (immersion test) verifies short-term waterproofing.


4. Future Trends: Smart and Sustainable Design

Smart Monitoring: Connector extension cords integrated with humidity/temperature sensors provide real-time sealing status alerts.

Eco-Friendly Materials: Bio-based plastic housings and recyclable metal terminals minimize industrial waste.

Wireless Alternatives: In some scenarios, wireless charging and signal transmission (e.g., expanded Qi standards) may replace traditional cords, reducing reliance on physical port protection.


In the era of Industry 4.0 and smart factories, the IP rating of connector extension cords is not merely a technical specification but a foundation for safe production. Through scientific selection and innovative design, high IP-rated connectors will continue to safeguard industrial equipment in harsh environments.
