In the field of industrial robotics, the seventh axis (i.e., external slide rail systems) is a critical component for extending robot operating ranges and enhancing production line flexibility. However, traditional slide rail systems often rely on complex multi-cable wiring for power and signal transmission, leading to high costs, difficult maintenance, and increased failure rates. The 6-pin M8 waterproof connectors has emerged as a revolutionary solution by integrating power and signal lines. Using FANUC robot slide rail systems as an example, this article analyzes how hybrid transmission technology enables efficient and reliable connectivity.

Challenges of Seventh Axis Slide Rail Systems: Limitations of Traditional Wiring

Seventh axis slide rails must supply power (e.g., for servo motors) and transmit critical signals such as encoder and limit switch data. Traditional solutions face three key issues:

Cable Redundancy: Separate power and signal cables occupy space, increasing drag chain loads (weight ↑30%).

Interference Risks: Parallel routing of power and encoder cables risks electromagnetic interference (EMI), causing positional feedback errors.

Complex Maintenance: Multiple interfaces are prone to water ingress or loosening, with an average monthly failure rate of 5% and maintenance times exceeding 2 hours per incident.

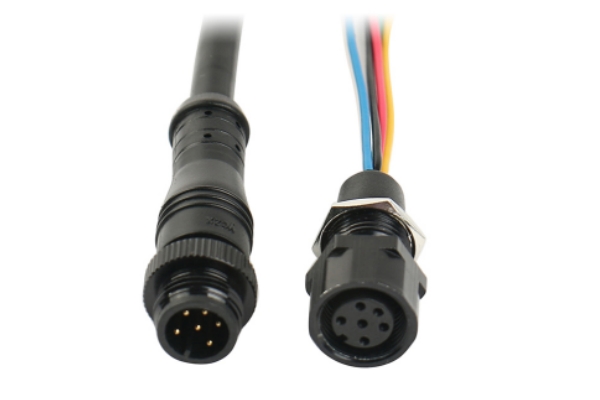

Technical Breakthroughs of 6-Pin M8 Waterproof Connectors

Hybrid Transmission Design: 3 Power + 3 Signal Integration

Power Pins (3x): Support 3-phase AC (e.g., 400V AC) or DC (24–48V DC) power, with a single-pin current capacity of 10A.

Signal Pins (3x): Transmit encoder differential signals (A+/A-, B+/B-), limit switch signals, and IO-Link communication.

Shielding Isolation: Metal casing + independent grounding pin suppress EMI, ensuring signal error <0.01%.

Waterproof and Vibration Resistance

IP67/IP69K Protection: Silicone seals + epoxy potting withstand high-pressure washing (80°C hot water) and oil penetration.

Thread Locking Mechanism: M8 threads + secondary locking clips resist vibrations up to 10Grms (compliant with IEC 60068-2-64).

Quick Connect and Modularity

Blind-Mating Design: Tolerates ±5mm alignment errors, reducing installation and commissioning time by 50%.

Hot-Swappable Modules: Enable connector replacement in 15 minutes, down from 2 hours.

Case Study: FANUC Robot Slide Rail System Upgrade

Background

An automotive welding workshop using FANUC M-710iC robots on a 7-meter slide rail initially relied on 12 separate cables (3-phase power + 9 signal lines). Frequent cable wear caused 3 monthly failures on average, with annual maintenance costs reaching $12,000.

Solution

Adoption of 6-pin M8 waterproof connectors configured as follows:

Power Section: 3 pins transmit 3-phase 400V AC (10A per pin) to drive the slide rail’s servo motor.

Signal Section: 3 pins transmit absolute encoder signals (Endat 2.2 protocol) and safety limit switch status.

Additional Feature: 1 reserved pin supports IO-Link for remote diagnostics.

Results

Reliability: Failure rate dropped from 5% to 0.5%; MTBF increased from 1,000 to 10,000 hours.

Cost Savings: Cable costs reduced by 60%; maintenance labor cut by 75%.

Flexibility: Slide rail length extended from 7 to 15 meters, enabling multi-robot collaboration.

Selection and Installation Guidelines

Current Matching: Select cable gauge based on servo motor power (e.g., 1.5mm² shielded cable for 10A).

Protocol Compatibility: Ensure encoder protocols (e.g., Endat, Hiperface) align with connector signal pins.

Environmental Adaptation:

Use IP69K + stainless steel housings in high-humidity areas.

Opt for fluorocarbon seals in low-temperature environments (-30°C).

The 6-pin M8 waterproof connectors redefines connectivity standards for industrial robot seventh axes through hybrid transmission, high protection ratings, and modular design. Practices by leaders like FANUC demonstrate its ability to boost reliability, efficiency, and scalability while laying the groundwork for future smart upgrades. For automated production lines prioritizing efficiency and low maintenance, this innovation represents a compelling investment.
