Comprehensive Analysis of Foolproof Design in 6-Pin M8 Waterproof Connectors: From Coding Mechanisms to Industrial Applications
Release time：2025-05-06
viewed：23

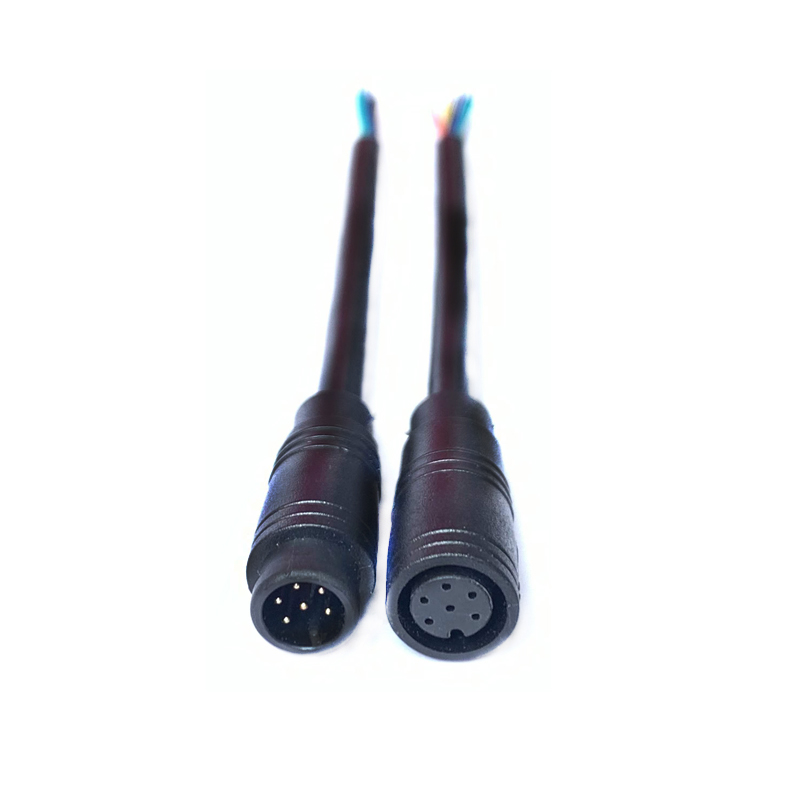

In industrial automation, outdoor lighting, and harsh-environment applications, the 6-pin M8 waterproof connector has become a critical component for signal and power transmission. Misconnection of these connectors can lead to equipment damage, system failures, or even safety hazards, making foolproof design essential. This article provides an in-depth analysis of the physical anti-misalignment structures, coding mechanisms, and typical applications of 6-pin M8 waterproof connectors, helping engineers select and use these industrial connectors correctly.
The 6-pin M8 waterproof connector employs physical coding mechanisms as the first line of defense against misconnection. This design ensures that connectors for different types of equipment cannot be mated by incorporating mechanical feature differences in the connector housing.
Type A: Basic configuration for standard sensors and power connections, featuring a single symmetrical keyway.
Type B: Used in PROFIBUS and other fieldbus systems, with a 30-degree offset keyway to prevent mixing with Type A.
Type D: Designed for Industrial Ethernet (e.g., EtherNet/IP), featuring two asymmetrical keyways to support high-speed data transmission.
Coding differences are reflected in the keyway position and protrusion structure of the metal housing.
For example, Type D’s dual-keyway design not only prevents misconnection but also ensures that the shield layer connects before power contacts, enhancing EMC performance.
This mechanical coding ensures that devices with different protocols cannot physically connect, eliminating signal mismatch risks.
The internal pin layout of the 6-pin M8 connector serves as the second layer of foolproof protection. Standardized pin assignments ensure functional isolation and optimize connection stability.
Pin 1 & 2: 24V DC power (+/-) (brown/blue wires)
Pin 3 & 4: Differential signal pair (black/white)
Pin 5: Dedicated ground/shield (bare copper or green-yellow wire)
Pin 6: Spare or auxiliary signal
This arrangement physically isolates power and signals, reducing crosstalk risks. Special applications may adjust pin definitions, but clear labeling is mandatory.
Break-before-make: Ground pins are 1.5mm longer to ensure they disconnect last.
Automatic short-circuit protection: Internal springs momentarily short power contacts during insertion to prevent arcing.
Reverse-insertion prevention: Asymmetrical pin layouts (e.g., 3+3 or 4+2 grouping) block 180° misalignment.
The IP67-rated 6-pin M8 waterproof connector integrates multiple sealing structures to balance foolproof and waterproof requirements.
Radial O-ring: Silicone seal creates uniform pressure when threaded, blocking moisture.
Cable potting: Polyurethane sealing at cable entry prevents capillary water ingress.
Metal housing: Nickel-plated brass resists salt spray corrosion (ideal for coastal outdoor lighting).
Threaded alignment: The M8×1 thread has a positioning groove to ensure correct starting angle.
Torque limitation: An audible "click" confirms proper mating at 0.6–0.8 N·m.
Color coding: Different coding types use contrasting housings (e.g., Type A = blue, Type D = gray).
Outdoor LED lighting: IP67 protection ensures stable control signals in heavy rain.
Industrial robots: Type D connectors enable real-time Ethernet communication in robotic arms.
EV charging stations: Type B connectors handle low-voltage auxiliary power, physically isolating high-voltage interfaces.
Coding type (A/B/D) matching device protocols.
Operating temperature (industrial standard: -25°C to +85°C).
Cable type: PUR for oil resistance, PVC for cost efficiency.
Certifications: UL, CE, etc., for reliability.
Proper installation and maintenance maximize foolproof effectiveness:
Inspect seals every 12 months; apply silicone grease to maintain waterproofing.
Clean contacts with isopropyl alcohol to remove oxidation.
Avoid sharp bends: Maintain 50mm straight cable sections near the connector.
Label management: Use color tags to distinguish same-coded connectors with different functions.
By understanding these foolproof design principles, engineers can minimize connection errors and enhance system reliability. As Industry 4.0 and IoT evolve, 6-pin M8 waterproof connector will remain pivotal in smart industrial applications.
