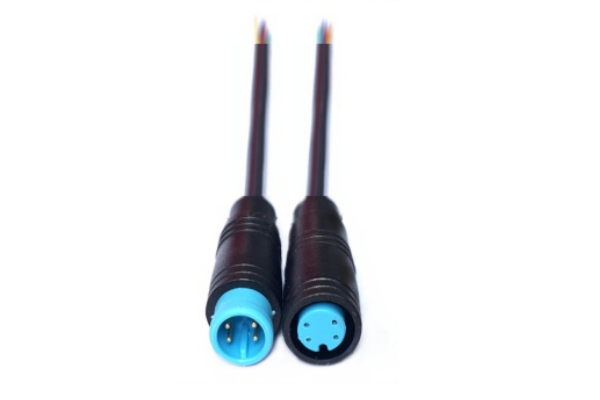

The M8 connector is a compact, rugged, and waterproof solution widely used in industrial automation, robotics, and sensor applications. Among its variants, the 4-pin M8 connector is particularly popular for its balance between power delivery and signal transmission in space-constrained environments.

However, inconsistent pinout definitions across manufacturers can lead to compatibility issues, miswiring, and even equipment damage. This article explores:

Common 4-pin M8 wiring standards (power + signal configurations)

Keying and foolproofing methods to prevent mix-ups with 5-pin and 8-pin M8 connectors

Non-standard pinout cases in specialized applications

1. Standard 4-Pin M8 Wiring Configurations

1.1 2-Power + 2-Signal (Most Common)

The dominant standard in factory automation follows:

Pins 1 & 2: 24V DC power supply (typically brown/blue wires)

Pins 3 & 4: Digital I/O or analog signals (black/white wires)

Applications:

Proximity sensors (inductive/capacitive)

Photoelectric sensors (light-on/dark-on modes)

Basic PLC I/O connections

Advantages:

Clear separation of power and signal reduces noise interference

Compatible with most off-the-shelf industrial devices

1.2 4-Wire Analog Signal (4-20mA Loop)

In process control systems, an alternative pinout is used for analog sensors:

Pin 1: +24V supply

Pin 2: Signal+ (4-20mA output)

Pin 3: Signal- (return path)

Pin 4: Ground (shield connection)

Why this matters:

Dedicated ground minimizes signal drift in long cable runs

Prevents ground loops in distributed control systems

2. Avoiding Confusion: 4-Pin vs. 5-Pin/8-Pin M8 Connectors

2.1 Physical Keying (Mechanical Foolproofing)

M8 connectors use coded key slots to prevent mismating:

A-coded (4-pin): Single offset keyway

B-coded (5-pin): Dual offset keyways

D-coded (8-pin): Larger rectangular key

Design Tip:

Always verify the key position before installation—forcing an incompatible connector can damage pins.

2.2 Color Coding & Labeling

Housing colors: Many manufacturers use black for 4-pin, gray for 5-pin, and blue for 8-pin.

Cable markers: Labels like "PWR/SIG" or "IN/OUT" reduce wiring errors.

2.3 Asymmetric Pin Arrangements

Some 4-pin variants intentionally leave one pin empty (e.g., only Pins 1, 2, and 4 populated) to prevent accidental mating with 5-pin sockets.

3. Non-Standard Pinouts in Specialized Applications

3.1 Motor Encoders (Differential Signals)

High-speed encoders may repurpose pins for:

Pin 1: +5V

Pin 2: 0V

Pin 3: A+ (differential clock)

Pin 4: A- (differential clock)

Challenge:

This conflicts with standard power/signal layouts, requiring custom cables.

3.2 Hybrid Power + Data (Ethernet over M8)

Emerging designs push 4-pin M8s to support:

10BASE-T1L (Single-Pair Ethernet)

PoDL (Power over Data Line)

Trade-off:

Higher-frequency signals demand shielded cables and careful impedance matching.

3.3 Proprietary Industrial Protocols

Device-specific pinouts exist for:

IO-Link masters (Pin 3 = L+/Pin 4 = L-)

CANopen nodes (Pin 1 = CAN_H/Pin 2 = CAN_L)

Best Practice:

Document non-standard pinouts in equipment manuals and use color-coded breakout adapters.

Conclusion: Ensuring Reliable Connections

Standardizing 4-pin M8 connector pinouts improves interoperability, but exceptions exist for niche applications. To minimize errors:

Follow IEC 61076-2-104 for baseline power/signal layouts.

Use keyed connectors and color coding to prevent mismating.

Audit non-standard devices before integration.
