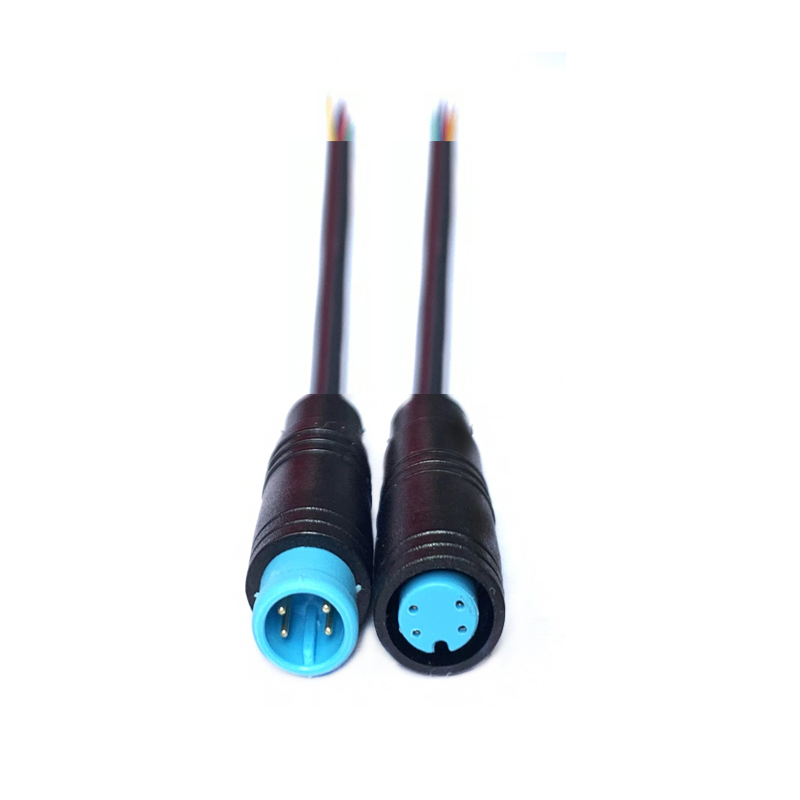

Selecting the appropriate 4-pin M8 waterproof connector is crucial for ensuring the reliable and efficient operation of your electrical systems, especially in environments where moisture, dust, and other contaminants are present. This guide will walk you through the key factors to consider based on application scenarios, electrical requirements, and mechanical performance.

1. Application Scenarios

Industrial Automation

In industrial automation settings, 4-pin M8 waterproof connector are commonly used to connect sensors, actuators, and other control devices. These environments often involve exposure to oil, chemicals, and mechanical vibrations. Look for connectors with high chemical resistance and robust mechanical locking mechanisms to prevent accidental disconnection. For example, if you are connecting a proximity sensor in a factory assembly line, a connector with an IP67 or higher rating can protect against dust and temporary immersion in water.

Outdoor Lighting

Outdoor lighting systems require connectors that can withstand harsh weather conditions, including rain, snow, and UV radiation. When choosing a 4-pin M8 waterproof connector for outdoor lighting, opt for connectors made from UV-resistant materials. Additionally, consider the ease of installation and maintenance, as outdoor fixtures may need to be serviced periodically. A connector with a simple plug-and-play design can save time and effort during installation and replacement.

Marine and Aquatic Applications

In marine and aquatic environments, connectors are exposed to saltwater, which is highly corrosive. Select 4-pin M8 waterproof connector with corrosion-resistant materials such as stainless steel or special coatings. These connectors should also have a high IP rating, typically IP68 or higher, to ensure long-term protection against water ingress. For example, in a marine monitoring system, a connector that can withstand continuous submersion is essential for reliable data transmission.

2. Electrical Requirements

Voltage and Current Rating

The voltage and current rating of the connector must match the requirements of your electrical system. Exceeding the rated voltage or current can lead to overheating, insulation breakdown, and even fire hazards. Check the specifications of your equipment to determine the appropriate voltage and current ratings. For example, if your device operates at 24V and draws a maximum current of 2A, choose a connector with a voltage rating of at least 24V and a current rating of 2A or higher.

Contact Resistance

Low contact resistance is essential for minimizing power loss and ensuring stable electrical connections. High contact resistance can cause voltage drops, which can affect the performance of your equipment. Look for connectors with gold-plated contacts, as gold has excellent electrical conductivity and corrosion resistance. A connector with low contact resistance will also reduce the risk of overheating and improve the overall efficiency of your system.

Insulation Resistance

Insulation resistance measures the ability of the connector to prevent electrical leakage. A high insulation resistance is necessary to ensure the safety and reliability of your electrical system. Check the insulation resistance specifications of the connector, especially in applications where electrical safety is critical. For example, in medical equipment or high-voltage systems, a connector with a high insulation resistance is essential to prevent electrical shock and short circuits.

3. Mechanical Performance

Mating Cycles

The number of mating cycles refers to the number of times the connector can be plugged and unplugged without significant degradation in performance. In applications where frequent connection and disconnection are required, such as in test equipment or modular systems, choose a connector with a high mating cycle rating. A connector with a mating cycle rating of 500 or more can ensure long-term reliability and durability.

Cable Retention

Proper cable retention is crucial for preventing the cable from pulling out of the connector, which can cause electrical failures. Look for connectors with a secure cable locking mechanism, such as a screw clamp or a strain relief boot. A connector with good cable retention will also protect the internal wiring from damage due to bending or pulling.

Size and Mounting

Consider the size and mounting options of the connector to ensure it fits your application. In space-constrained environments, a compact connector may be required. Additionally, choose a mounting style that is compatible with your equipment, such as panel mount, cable mount, or free-hanging. The right size and mounting option will make the installation process easier and more efficient.

Choosing the right 4-pin M8 waterproof connector requires careful consideration of the application scenario, electrical requirements, and mechanical performance. By taking these factors into account, you can select a connector that provides reliable and long-lasting performance in your specific environment. Remember to always refer to the manufacturer's specifications and guidelines to ensure proper selection and installation.
