Modern vehicles have replaced mechanical throttle cables with sophisticated electric pedal systems. At the heart of this system lies the Car electric pedal wiring harness, a neural network translating foot pressure into precise acceleration commands. Here’s how it engineers responsiveness while guarding against failure.

Core Components: The Anatomy of an E-Pedal Harness

The e-pedal harness integrates three critical elements to convert physical input into actionable data:

Position Sensors (Dual/Triple Redundant)

Function: Detect pedal angle/displacement via Hall-effect or potentiometer mechanisms310.

Redundancy: Dual/triple sensors cross-verify signals—if one fails, others maintain operation (e.g., Volkswagen’s 3-sensor design)8.

Signal Conditioning Circuitry

Noise Suppression: Filters electromagnetic interference (EMI) from motors/ignition systems using differential signaling and RF chokes10.

Voltage Stabilization: Regulates 5V sensor supply within ±0.1V tolerance—critical for signal accuracy9.

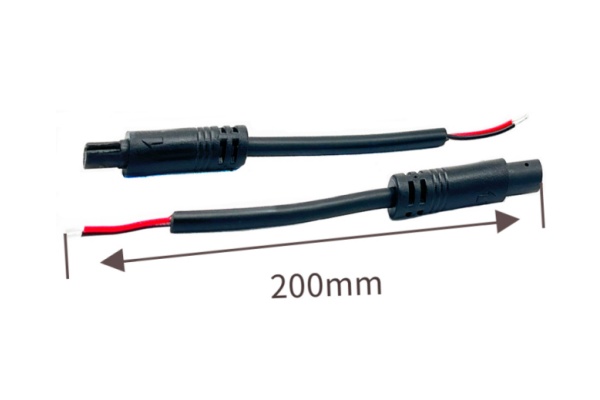

Connector System

Sealed Terminals: IP67-rated connectors prevent corrosion from moisture/contaminants5.

Gold-Plated Contacts: Ensure <10mΩ resistance rise after 10,000 mating cycles5.

Signal Transmission: From Analog Pedal Press to Digital Command

When the driver depresses the pedal, a choreographed sequence unfolds:

Signal Acquisition:

Sensors generate 0.5–4.5V analog signals proportional to pedal travel (0.5V = idle; 4.5V = WOT)3.

Dual/triple signals are compared for consistency—a >0.5V deviation triggers fault codes10.

Analog-to-Digital Conversion (ADC):

Engine Control Unit (ECU) samples signals at 1–10kHz, converting voltage into 12-bit digital values (4,096 resolution steps)10.

Protocol-Based Transmission:

Legacy Systems: Dedicated analog wiring (susceptible to noise over long runs)6.

Modern CAN Bus: Digital signals via twisted-pair wires (differential signaling cancels noise). Data packets include checksums to detect corruption68.

Safety & Fail-Safes: When the Wire Becomes the Lifeline

E-pedal systems embed multi-layer protections against misinterpreted inputs:

Plausibility Checking: ECU cross-references pedal signals with brake pressure, wheel speed, and engine load. Erratic acceleration without brake application triggers limp mode8.

Default-State Fallback: Power loss reverts throttle to idle via spring mechanics—ensuring no runaway acceleration8.

Diagnostic Protocols: Continuous circuit monitoring (e.g., ISO 26262 ASIL-D compliance). Open circuits/shorts log DTCs (e.g., P0120) and illuminate MIL lamps10.

Real-World Failure: In 2025, Volvo recalled EVs for brake-by-wire module faults—highlighting how harness integrity impacts fail-safe operation8.

Harness Design & Material Science

Surviving the pedal box’s harsh environment demands engineered resilience:

Conductors: Oxygen-free copper (OFC) strands reduce resistance drift at temperature extremes (-40°C to 150°C)5.

Insulation: Cross-linked polyethylene (XLPE) sheathing resists abrasion, oils, and coolant exposure5.

EMI Shielding: Aluminum foil + braided copper layers attenuate noise by 60–80dB10.

Accelerated Testing includes:

500-hour salt spray (per ISO 9227)

Vibration testing to 30G (SAE J2380)

Flex endurance >1 million cycles

Future Evolution: Smart Harnesses & Integrated Diagnostics

Next-gen systems will embed intelligence within the harness itself:

Predictive Sensors: Strain gauges detecting wire fatigue before failure6.

Self-Diagnosing Connectors: Chips monitoring contact resistance/insulation integrity, transmitting reports via CAN FD6.

Lightweight Materials: Aluminum-reinforced polymers cutting harness weight by 40% (critical for EVs)5.

Your foot presses the pedal. Within milliseconds, sensors capture intent, circuits scrub noise, and protocols ferry commands. This invisible harness—often overlooked—is where human impulse becomes machine motion. As cars evolve toward drive-by-wire futures, its role as the nerve of acceleration grows only more vital.
