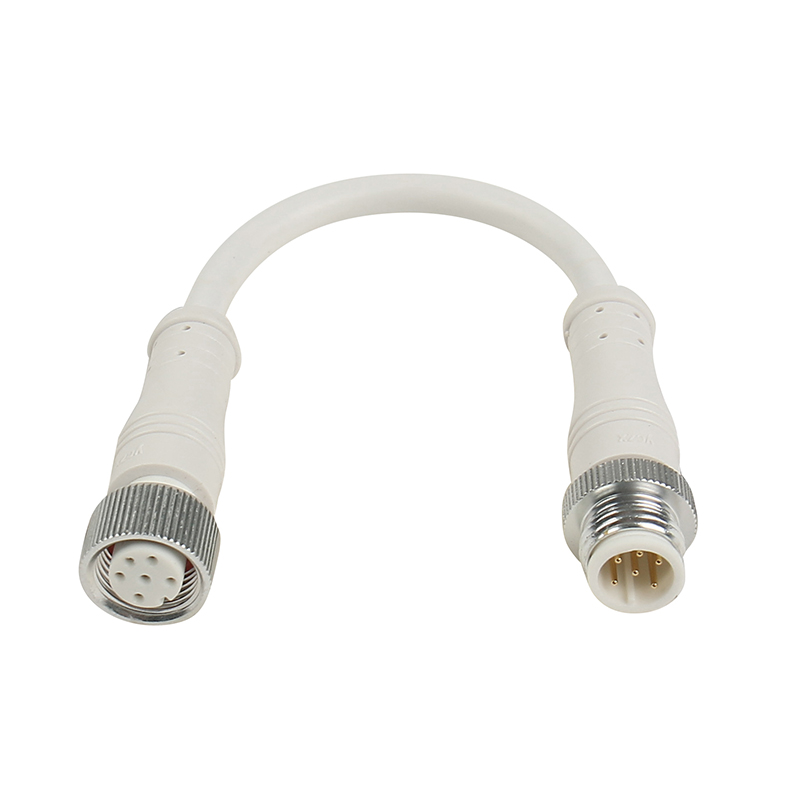

In harsh environments, 6 pin waterproof connectors must maintain reliable performance under water immersion, dust exposure, and mechanical stress. The IP67/IP68 standards define their sealing capabilities, achieved through a dual-barrier system combining elastomeric O-rings and epoxy potting compounds. This article dissects how these layers collaboratively ensure hermeticity.

O-Ring: The Primary Defense

The first seal involves precision-molded O-rings seated in circumferential grooves. When mated, compression forces deform the O-ring radially, creating a watertight interface between connector housings. For 6 pin waterproof connectors, material selection (e.g., fluorocarbon rubber) balances chemical resistance and elasticity. However, dynamic applications—like vibrating machinery—require supplementary protection to prevent micro-gap formation.

Potting Compound: Secondary Reinforcement

After O-ring installation, liquid potting compound fills internal cavities around contacts. Cured into a solid dielectric mass, it blocks moisture ingress through capillary action and compensates for O-ring compression set over time. In IP68-rated 6 pin waterproof connectors, this dual-layer approach withstands prolonged submersion at 1+ meter depths by eliminating all leakage paths.

Synergistic Advantages

Pressure Equalization: O-rings handle rapid pressure changes (e.g., underwater connectors), while potting resists slow permeation.

Vibration Damping: The compound absorbs mechanical energy, reducing O-ring wear in industrial robots or vehicle wiring.

Corrosion Prevention: Combined sealing isolates pins from electrolytes, critical for marine or automotive 6 pin waterproof connectors.

The O-ring and potting compound synergy in 6 pin waterproof connectors exemplifies engineered redundancy. As industries demand higher reliability, this dual-sealing paradigm will evolve with advanced materials like graphene-enhanced elastomers and self-healing polymers. Future iterations may integrate real-time seal integrity monitoring, further elevating performance benchmarks.
