The choice between M8 and M12 waterproof connector solutions significantly impacts system reliability in industrial automation, robotics, and outdoor applications. Both types offer excellent environmental protection but differ in several performance aspects that engineers must consider.

Physical Dimension Comparison

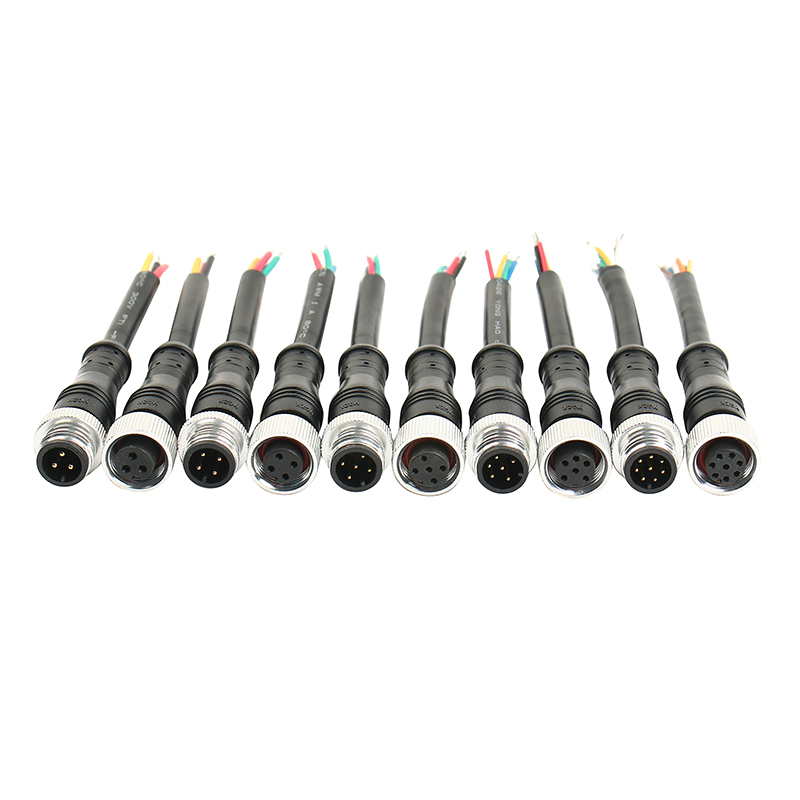

The most obvious difference between these waterproof connector  variants is size. The M8 waterproof connector features an 8mm threaded coupling, making it ideal for space-constrained applications. The larger M12 waterproof connector (12mm coupling) provides more internal space for wiring and additional contacts.

Current Carrying Capacity

Electrical performance varies substantially between these waterproof connector types. The compact M8 waterproof connector typically handles 2-4A current, while the M12 waterproof connector can manage 4-8A depending on configuration. This makes M12 versions better suited for higher-power applications.

Environmental Protection

Both M8 and M12 waterproof connector systems achieve IP67 or higher ratings when properly installed. However, the larger sealing surface of M12 waterproof connectors often provides marginally better long-term moisture resistance in continuously wet environments.

Mechanical Durability

The M12 waterproof connector generally offers superior vibration resistance due to its larger locking mechanism and more robust housing. M8 waterproof connector solutions remain adequate for most static or lightly vibrating installations.

Contact Configuration Options

M12 waterproof connector systems support more contact arrangements (3-12 pins) compared to M8 waterproof connector variants (typically 3-8 pins). This gives designers greater flexibility in signal and power integration.

Selecting between M8 and M12 waterproof connector solutions involves trade-offs between size constraints, power requirements, and environmental challenges. While M8 versions excel in compact applications, M12 waterproof connector  provide greater current capacity and mechanical robustness for demanding industrial environments.
