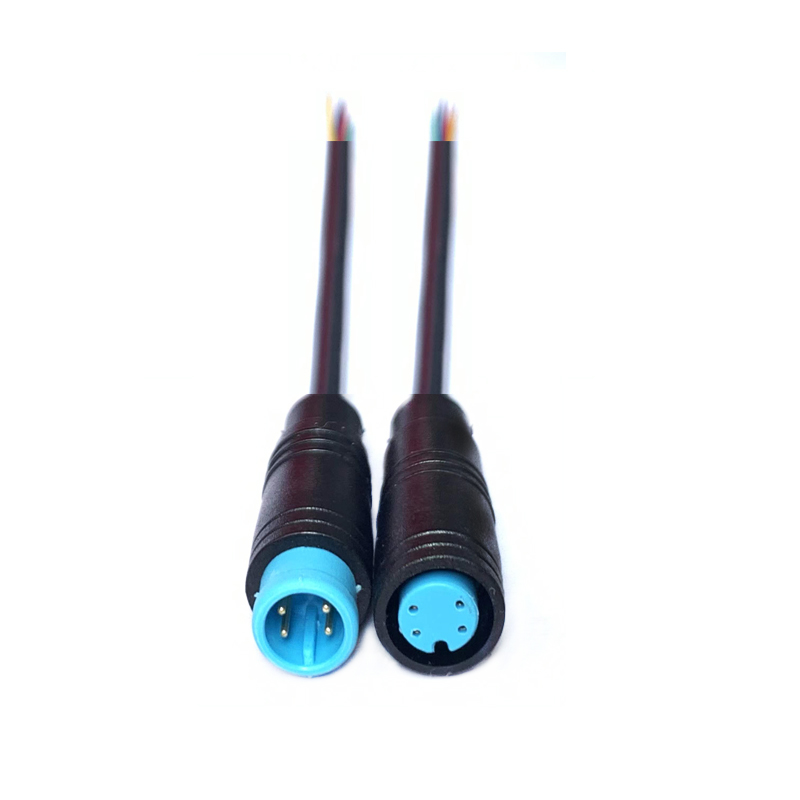

The 4 pin M8 waterproof connector has become indispensable in industrial automation due to its compact design and environmental resilience. This article focuses on two critical installation aspects: the foolproof threading mechanism and proper cable stress management, both essential for maximizing the performance of your 4 pin M8 waterproof connector systems.

Foolproof Threading Design

Modern 4 pin M8 waterproof connectors utilize A/B-type key coding to prevent mismating. The threaded coupling system features:

Physical polarization: Asymmetric grooves ensure the 4 pin M8 waterproof connector only engages in correct orientation

Tactile feedback: Distinct click sensation confirms proper locking

Color indicators: Optional visual markers complement mechanical coding

When installing 4 pin M8 waterproof connectors, always verify alignment before applying rotational force. For harsh vibration environments, consider applying thread-locking compounds while maintaining IP sealing integrity.

Cable Stress Management

The compact size of 4 pin M8 waterproof connector demands careful strain relief:

Maintain minimum 5x cable diameter bend radius

Use 15-20mm straight cable entry before any directional change

Secure cables within 50mm of the 4 pin M8 waterproof connector body

Field studies show proper stress control can extend 4 pin M8 waterproof connector service life by 300%. Avoid sharp bends near the termination point, as this concentrates mechanical stress on solder joints or crimp connections.

Proper handling of 4 pin M8 waterproof connector significantly impacts system reliability. By adhering to the A/B coding system and implementing rigorous cable management protocols, installers can fully leverage the waterproof and vibration-resistant properties of these connectors. Always refer to manufacturer torque specifications (typically 0.5-1.2Nm) when finalizing installations.
