2 Pin M6 Waterproof Connector

Three Critical Selection Factors for 2 Pin M6 Waterproof Connectors: IP Rating, Wire Gauge Compatibility, and Material Durability

Release time:2025-05-27

viewed:32

The 2 pin M6 waterproof connector has become a cornerstone in compact electronic systems exposed to harsh environments. Its reliability hinges on three interdependent factors: IP protection level, conductor compatibility, and material resilience. This article dissects how these elements adapt to chemical, humid, and vibrational stresses while maintaining electrical performance.

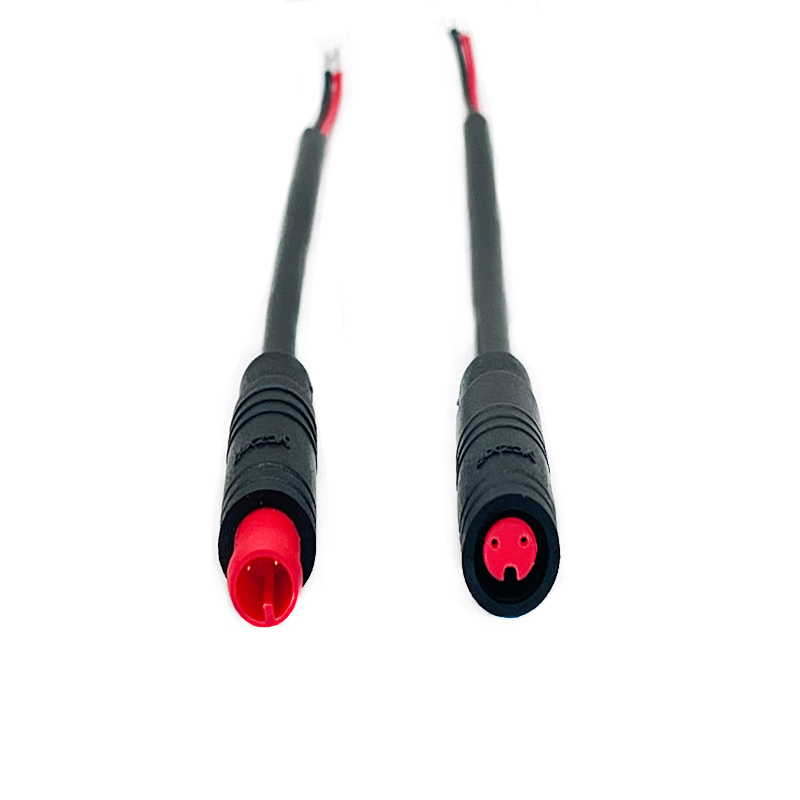

M6 2-core connecting cable  Waterproof Connector

1. IP Rating: The First Defense Layer

For 2 pin M6 waterproof connectors, IP67 (temporary immersion) or IP68 (prolonged submersion) ratings are typical benchmarks. In acidic/alkaline settings, IP69K-rated units with chemical-resistant seals outperform standard models by resisting corrosive fluid penetration. High-humidity applications demand connectors exceeding IP68 to prevent internal condensation—critical for tropical climate deployments.

2. Wire Gauge Matching: Balancing Current and Flexibility

The 2 pin M6 waterproof connector’s compact size necessitates precise wire pairing. For vibration-prone scenarios (e.g., automotive/robotics), 22-24 AWG stranded wires with silicone insulation reduce fatigue fractures, while solid cores risk breakage under repeated stress. High-current uses (3A+) require thicker 18-20 AWG conductors, but may compromise bend radius—highlighting the trade-off between power capacity and mechanical durability.

3. Material Selection: Environment-Specific Solutions

Chemical Exposure: PPS (polyphenylene sulfide) housings and FKM (fluorocarbon rubber) seals resist fuels/solvents better than standard nylon/Viton.

Saltwater/High Humidity: Marine-grade stainless steel shells with nickel-plated contacts prevent galvanic corrosion.

Thermal Cycling: Thermoplastic elastomer (TPE) jackets maintain flexibility across -40°C to 125°C ranges, avoiding PVC’s cold-cracking risk.


Selecting a 2 pin M6 waterproof connector demands holistic evaluation of environmental threats and electrical needs. By prioritizing context-specific IP ratings, wire-conductor synergy, and advanced materials, engineers can ensure robust performance in even the most demanding applications.
