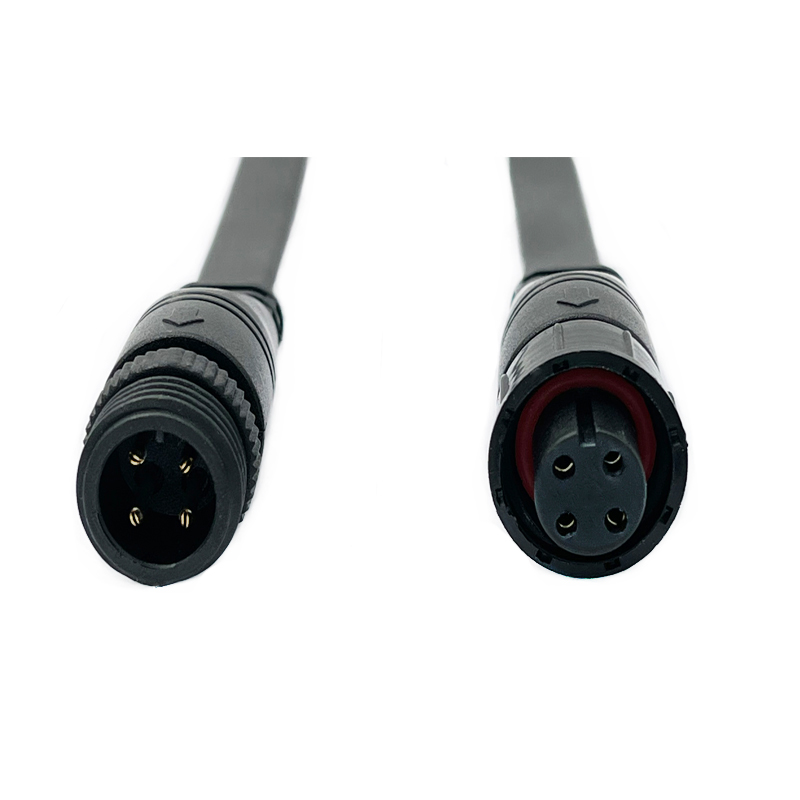

The male female 4 pins connectors system serves as a critical interface in modern electronics, balancing compact design with reliable power/signal transmission. These connectors feature gender-specific structural configurations - male connectors with protruding pins and female counterparts with recessed sockets - creating secure interconnections while preventing reverse mating. Their quad-pin architecture enables diversified applications from industrial automation to automotive electronics, where space efficiency and current-carrying capacity are paramount.

Mechanical Architecture and Current Transmission

The male female 4 pins connectors  performance stems from its precision-engineered components. Male connectors house pins arranged in square or rectangular patterns with 2-4mm spacing, optimized for balanced current distribution while minimizing electromagnetic interference. Female connectors employ spring-loaded sockets that exert 0.5-2N contact force per pin, maintaining low resistance connections (<5mΩ) even under vibration.

Current capacity depends on pin cross-sectional area, with standard 4-pin M16 connectors handling 3A/pin (30V DC) through oxygen-free copper cores. Larger pin diameters (0.8-1.5mm) reduce current density, mitigating thermal buildup in high-load applications like motor controllers. The insulation barrier between pins uses glass-filled nylon or PBT polymers, providing >100MΩ isolation resistance to prevent leakage.

Gender-Specific Mating Mechanisms

The male female 4 pins connectors interface incorporates foolproofing through mechanical coding:

Polarization - D-shaped shrouds or offset keyways enforce correct orientation, requiring <5N insertion force while preventing reverse mating

Sequential engagement - Longer ground pins in male connectors make first contact, protecting signal pins from electrostatic discharge

Tactile feedback - Audible clicks from stainless steel latches confirm proper engagement while resisting 50N+ pull-out forces

Industrial variants add IP67-rated silicone seals around male pin headers, blocking moisture ingress that could degrade female socket contacts. Military-grade versions implement triple-start threads requiring 180° rotation for mating, combining mechanical retention with environmental sealing.

Material Selection and Performance Tradeoffs

Copper Alloys (C11000/C5191)

Pros: Low bulk resistivity (1.72μΩ·cm), cost-effective for high-volume production

Cons: Prone to oxidation; untreated surfaces increase contact resistance by 20% after 500 mating cycles

Gold Plating (0.2-0.8μm over nickel undercoat)

Pros: Maintains <10mΩ contact resistance after 10,000 cycles; ideal for low-voltage signal applications

Cons: Adds 15-30% cost; soft surface wears faster in high-vibration environments

Hybrid approaches gold-plate female sockets (experiencing more friction) while using tin-plated male pins, optimizing cost versus reliability. Emerging graphene-doped coatings show promise for corrosion resistance without precious metals.

The male female 4 pins connectors  exemplifies electromechanical synergy, where geometric precision (pin spacing, housing symmetry) governs current capacity, while material science determines long-term reliability. Modern designs increasingly integrate smart features like embedded contact wear sensors and active alignment guides, pushing these humble components toward Industry 4.0 readiness.
