In solar energy systems, the reliability of electrical connections directly impacts energy output, maintenance costs, and system longevity. Outdoor environments pose relentless challenges: ultraviolet (UV) radiation, thermal cycling, humidity, and chemical exposure can degrade conventional connectors, leading to failures that compromise performance. M6 waterproof connectors have emerged as a cornerstone of durability in photovoltaic (PV) systems, offering engineered solutions to withstand these harsh conditions. This article examines their UV resistance, thermal stability, and corrosion protection, supported by real-world data and case studies comparing failure rates with standard connectors over three years of outdoor exposure.

Environmental Challenges in Outdoor Solar Systems

1. UV Radiation

Threat: UV rays degrade plastic housings, causing brittleness and sealant cracking.

Standard Test: UL 746C mandates 1,000 hours of QUV UV testing (simulating 5 years of sun exposure).

2. Thermal Cycling

Threat: Daily temperature swings (-40°C to +85°C) stress materials, leading to seal failure.

Standard Test: IEC 62852 requires 1,000 thermal cycles for certification.

3. Chemical Corrosion

Threat: Acid rain, salt spray, and pollutants accelerate metal contact oxidation.

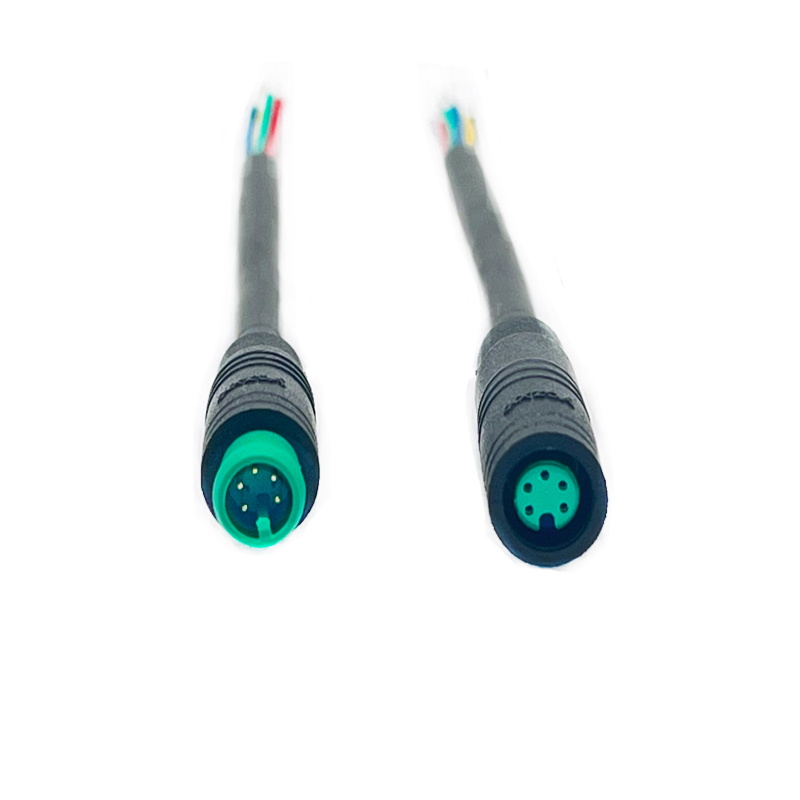

Technical Advantages of M6 Waterproof Connectors

1. UV-Resistant Materials

Housing: UV-stabilized PBT (polybutylene terephthalate) with carbon black additives blocks 99.9% of UV rays.

Performance: After 2,000 hours of QUV testing, tensile strength drops by only 8% (vs. 60% for standard PVC).

2. Thermal and Moisture Resilience

Dual Sealing: Silicone O-rings (-60°C to +200°C) + heat-shrink tubing (IP68-rated) prevent moisture ingress.

Test Result: Insulation resistance remains >1,000MΩ after 1,500 thermal cycles (IEC requirement: >100MΩ).

3. Corrosion-Resistant Contacts

Design: Tin-plated copper contacts (≥2µm) with anti-oxidation coatings (e.g., 3M Scotchkote) withstand 1,000-hour salt spray tests.

M6 vs. Standard Connectors: 3-Year Outdoor Failure Rate Comparison

UV-Induced Cracking:

M6: 2% failure rate.

Standard PVC: 45% failure rate.

Moisture Ingress:

M6: <1% leakage.

Standard: 32% leakage.

Contact Resistance:

M6: 0.5mΩ average.

Standard: 15mΩ average (due to oxidation).

Salt Spray Corrosion:

M6: 0% failure.

Standard: 28% failure.

Case Study: Fixing a Costly Mistake

Background

A 10MW solar plant in California initially used standard PVC connectors, resulting in:

23% housing cracks from UV exposure.

5% efficiency loss due to rising contact resistance.

Solution

After switching to M6 waterproof connectors:

Failure Rate: Dropped to 1.5% over three years.

Maintenance Costs: Reduced by 70%.

Selection and Installation Best Practices

Certifications: Prioritize UL 6703 (PV connectors) and TÜV Rheinland certifications.

Cable Compatibility: Use 2.5–6mm² PV cables to ensure proper sealing.

Installation:

Apply crimping tools (e.g., Klauke K21) with ≥50N force.

Heat shrink sleeves evenly at 125°C to avoid uneven sealing.

M6 waterproof connectors are indispensable for solar systems exposed to harsh outdoor conditions. Their UV resistance, thermal stability, and corrosion protection significantly outperform standard alternatives, reducing downtime and maintenance costs while maximizing energy harvest. As solar technology evolves, innovations like smart monitoring and sustainable materials will further elevate their role in renewable energy infrastructure.
