Waterproof connectors are the backbone of reliable LED lighting systems, whether you’re illuminating a garden path, designing smart home fixtures, or creating dynamic architectural displays. But with options ranging from 2-core to 5+ cores, selecting the right connector can be daunting.

1. Core Count Options and Applications

A. 2-Core LED waterproof connector (Power Only)

Applications:

Basic LED strips, solar-powered garden lights.

Single-color, always-on lighting (e.g., pathway markers).

Advantages:

Simple design, cost-effective, and easy to install.

High waterproof ratings (IP67/IP68) for outdoor durability.

Typical Specs:

Voltage: 12V/24V DC.

Current: ≤10A.

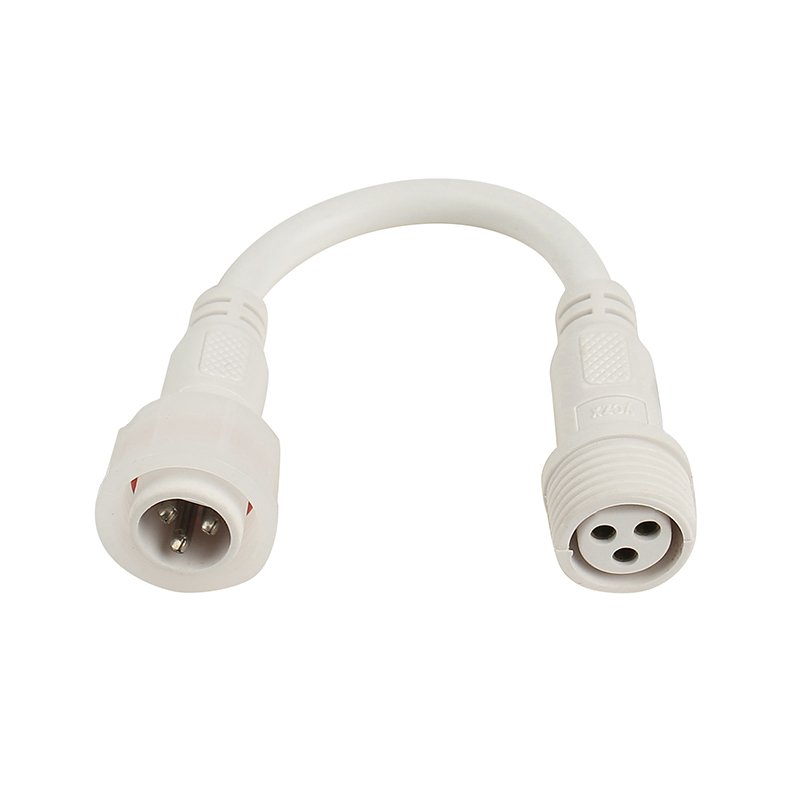

B. 3-Core LED waterproof connector (Power + 1 Signal)

Applications:

Dimmable LED fixtures (PWM or 0–10V control).

Smart bulbs with adjustable brightness.

Pin Layout:

Pin 1: Power (+).

Pin 2: Power (–).

Pin 3: Dimming signal.

Advantages:

Enables basic smart control without complexity.

Widely used in residential and commercial lighting.

C. 4-Core LED waterproof connector (Power + 2 Signals/Redundancy)

Applications:

RGB LED strips (Red, Green, Blue + Common Ground).

Industrial lighting requiring backup circuits.

Pin Layout (RGB Example):

Pin 1: Red control.

Pin 2: Green control.

Pin 3: Blue control.

Pin 4: Ground (–).

Advantages:

Supports multi-color lighting effects.

Redundant design enhances reliability.

D. 5+ Core LED waterproof connector (Advanced Control)

Applications:

RGBW (Red, Green, Blue, White) or RGBIC (individually addressable segments).

Stage lighting, architectural façade animations.

Pin Layout (RGBW Example):

Pins 1–4: Color channels (R, G, B, W).

Pin 5: Ground (–).

Advantages:

Enables complex lighting effects (gradients, zoning).

High IP68/IP69K ratings for harsh environments.

2. Key Selection Factors

A. Functionality Requirements

Static Lighting: 2-core (power only).

Smart Dimming: 3-core (power + signal).

Color Dynamics: 4-core or higher (multiple control channels).

B. IP Rating

IP65: Rainproof for covered outdoor fixtures.

IP67: Temporary submersion (e.g., garden pond lights).

IP68: Permanent underwater use (fountain lighting).

C. Current and Wire Gauge

Low Power (≤5A): 18–20 AWG wires (2–3 cores).

High Power (>10A): 14–16 AWG wires (4+ cores with split power paths).

D. Installation Type

Push-In: Quick-connect for LED strip joints.

Threaded Locking: Vibration-resistant for vehicles or machinery.

3. Common Issues & Solutions

A. Reduced Waterproofing Over Time

Cause: Degraded O-rings or insufficient epoxy potting.

Fix: Use epoxy-filled connectors and replace O-rings every 1–2 years.

B. Signal Interference (Flickering Lights)

Cause: Unshielded signal lines near power cables.

Fix: Opt for connectors with EMI shielding or twisted-pair wiring.

C. Overheating

Cause: Undersized wires or poor contact plating.

Fix:

Use silver/gold-plated contacts for high-current paths.

Separate power and signal lines in multi-core connectors.

4. Recommended Models by Application

2-Core: IP68 M16 Threaded Connectors (ideal for solar streetlights).

3-Core: JST-SM Waterproof (perfect for dimmable indoor/outdoor LEDs).

4-Core: GX16 Aviation Plugs (rugged RGB outdoor displays).

5+ Core: M12 Industrial Connectors (high-end architectural lighting).

5. Final Tips for Success

Corrosive Environments: Stainless steel housings + gold-plated contacts.

High-Vibration Zones: Spring-lock or threaded connectors.

Complex Systems: Prioritize modular designs for easy maintenance.

Choosing the right core count for LED waterproof connector ensures your lighting systems perform reliably—whether you’re battling rain, dust, or saltwater. Match the connector to your functional needs, environment, and power demands, and you’ll avoid costly rewiring or failures.
