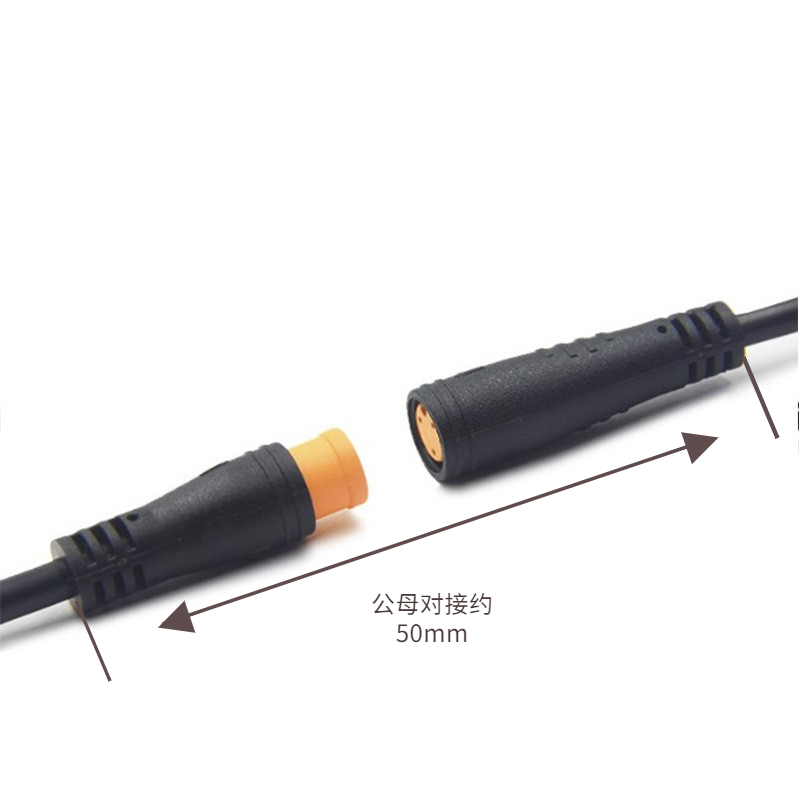

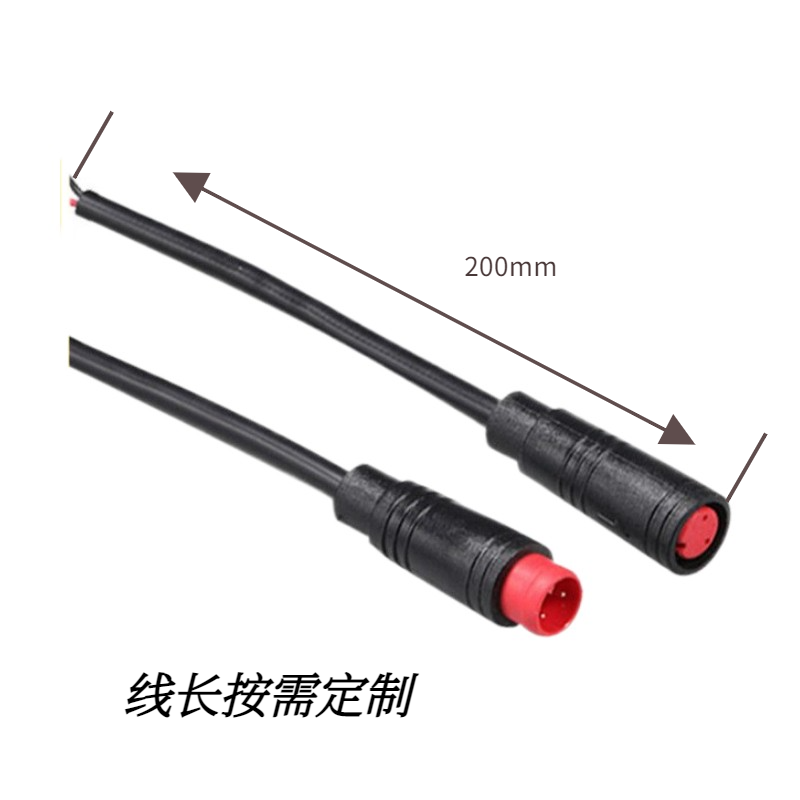

M8 waterproof low-voltage connectors have become essential components in industrial automation, marine applications, and outdoor electrical systems due to their compact size and reliable moisture protection. However, improper installation can compromise their IP-rated sealing performance and electrical safety. This article reveals five critical installation errors that could lead to equipment failure, electrical hazards, or even workplace accidents when working with M8 waterproof connectors. Understanding these pitfalls helps engineers and technicians ensure optimal performance from these crucial connection components.

1. Ignoring IP Rating Compatibility

The most fundamental mistake is assuming all M8 waterproof connectors offer equal protection. IP67-rated connectors (submersible up to 1m for 30 minutes) differ significantly from IP69K-rated units (resistant to high-pressure washdowns). Installing an IP67 connector in a food processing plant where steam cleaning occurs will inevitably lead to water ingress. Always verify the connector's IP rating matches the environmental exposure levels, including potential chemical contact in industrial settings.

2. Incorrect Cable Gland Tightening

Under-tightening M8 waterproof connectors cable glands is a common error that breaks the waterproof seal. Conversely, over-tightening may crack the housing or deform O-rings. The proper method involves:

Hand-tightening until resistance is felt

Applying a ¼ to ½ additional turn with a spanner

Checking for uniform compression of the sealing ring

Always use the manufacturer's specified torque values, typically between 0.5-1.2 Nm for M8 connectors.

3. Neglecting Strain Relief

Waterproof integrity means nothing if cable movement breaks internal connections. Failing to implement proper strain relief causes:

Wire fatigue at termination points

Gradual loosening of waterproof seals

Potential short circuits from broken conductors

Solutions include using integrated strain relief collars, adding external cable clamps, or employing spiral wrap protection in high-vibration environments.

4. Contaminating Sealing Surfaces

Even microscopic debris on O-rings or threaded surfaces can compromise waterproofing. Common contaminants include:

Metal shavings from panel drilling

Lubricants incompatible with sealing materials

Dust containing abrasive particles

Best practices demand cleaning mating surfaces with isopropyl alcohol and inspecting O-rings under magnification before assembly. Never use silicone sprays as temporary lubricants—they attract dust.

5. Mismatched Mating Cycles

Industrial M8 connectors are rated for specific mating cycles (typically 50-100 for basic models, 500+ for premium versions). Frequent unplugging beyond rated cycles wears out:

Contact spring tension

Thread locking mechanisms

Sealing surface integrity

For applications requiring regular disconnection, specify high-cycle variants or use intermediary breakout panels to preserve the primary waterproof connection.

Proper installation of M8 waterproof low-voltage connectors requires attention to engineering details often overlooked in field installations. By avoiding these five critical mistakes—IP rating mismatches, improper gland tightening, inadequate strain relief, seal contamination, and exceeding mating cycles—technicians can ensure reliable performance in wet or harsh environments. Always consult manufacturer guidelines and consider environmental factors beyond basic electrical requirements when deploying these compact but critical components.
