M16 Waterproof Connector: Common Issues & Solutions for Reliable Performance
Release time：2025-04-18
viewed：10

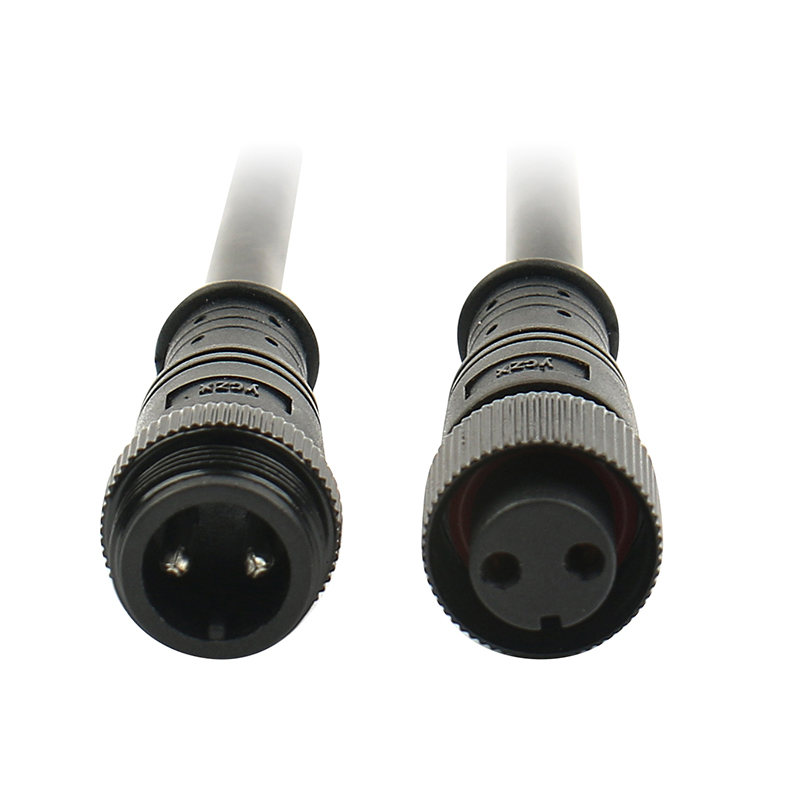

M16 waterproof connectors are widely used in industrial automation, renewable energy, and outdoor equipment due to their robust design and IP67/IP68 sealing. However, even these rugged components can face challenges in harsh environments. This article explores the most common issues with M16 connectors, their root causes, and actionable solutions to ensure uninterrupted performance.
Symptoms: Moisture inside the connector, fogged viewing windows.
Causes:
Damaged or misaligned O-rings.
Insufficient tightening torque (standard: 2–4 N·m for M16).
Incomplete potting of internal cavities.
Solutions:
Replace O-rings with fluorocarbon rubber seals (resistant to heat/chemicals).
Use a torque wrench to tighten threads and mark alignment lines for consistency.
Apply two-part epoxy potting (e.g., 3M DP270) to fill gaps.
Symptoms: Intermittent signals, voltage fluctuations.
Causes:
Oxidized contacts (common in salty or humid environments).
Loose pins/sockets due to vibration.
Low contact force from oversized tolerances.
Solutions:
Choose gold-plated contacts (≥0.5μm thickness).
Use spring-loaded sockets for better retention.
Install spring-lock mechanisms in high-vibration zones.
Symptoms: Broken wires near the connector neck.
Causes:
Excessive bending (bend radius <8× cable diameter).
Missing strain relief sleeves.
Solutions:
Use flexible PUR-jacketed cables (tested for >5 million flex cycles).
Add spring-loaded strain relief boots .
Symptoms: Pitted or discolored housings.
Causes:
Aluminum housings without passivation.
Welded stainless steel without post-weld treatment.
Solutions:
Opt for 316L stainless steel or nickel-plated aluminum housings.
Apply PTFE coatings for chemical/UV resistance.
Symptoms: Softened insulation, burnt contacts.
Causes:
Insufficient temperature rating (e.g., PVC at 70°C).
High current causing localized heating (ΔT >30°C).
Solutions:
Upgrade to LCP (liquid crystal polymer) or PEEK insulators (150°C+ rated).
Redesign with multi-pin parallel contacts to reduce current density.
Symptoms: Cross-talk, data errors.
Causes:
Unshielded power/signal lines in the same connector.
Poor shield termination.
Solutions:
Use shielded M16 connectors .
Pair with twisted-pair cables + foil/braid shielding.
Symptoms: Difficulty mating connectors, stripped threads.
Causes:
Incorrect panel cutout size (standard: Φ19–20mm for M16).
Mixed metric (M16×1.5) and NPT threads.
Solutions:
Use snap-in panel mounts for quick alignment.
Label thread standards clearly .
Monthly: Inspect O-rings for wear; clean contacts with isopropyl alcohol.
Biannually: Test insulation resistance (>100MΩ) and contact resistance (<5mΩ).
Annually: Reapply silicone grease (e.g., Dow Corning DC4) to seals.
Q: How to choose between IP67 and IP68 M16 waterproof connectors?
A: IP67 resects temporary submersion (30 mins at 1m depth); IP68 is for prolonged underwater use.
Q: Can M16 waterproof connectors handle 24V DC systems?
A: Yes—most M16 waterproof connectors support 12–48V DC.
Q: What’s the lifespan of M16 waterproof connectors?
A: 10+ years with proper installation and maintenance.
Always perform a continuity test before deployment.
Use color-coded connectors to simplify troubleshooting.
Partner with suppliers offering custom potting/shielding services.
By addressing these common issues proactively, M16 waterproof connectors can deliver reliable, long-term performance in even the harshest environments.
