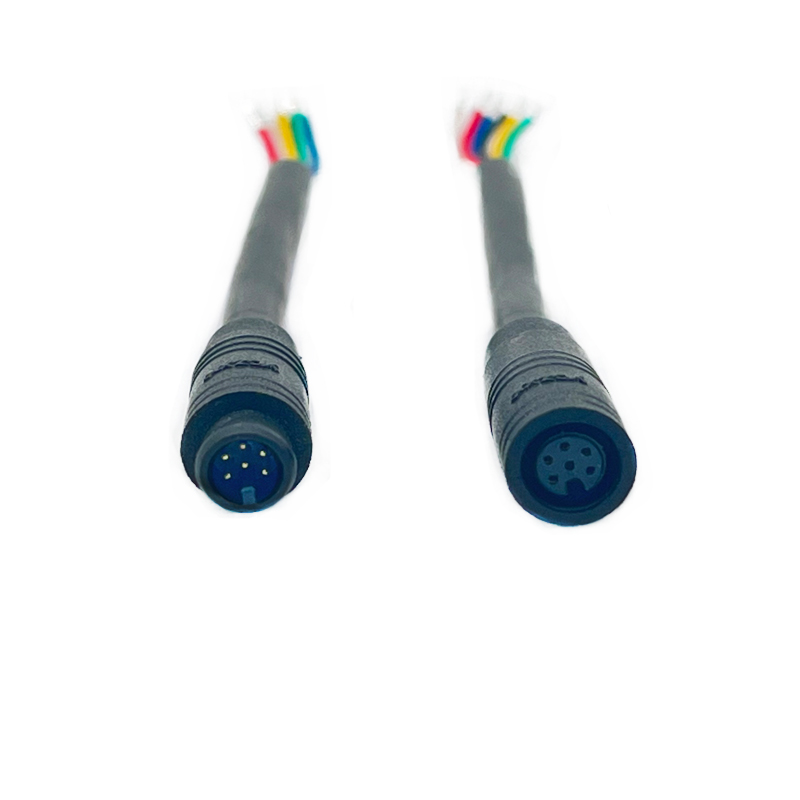

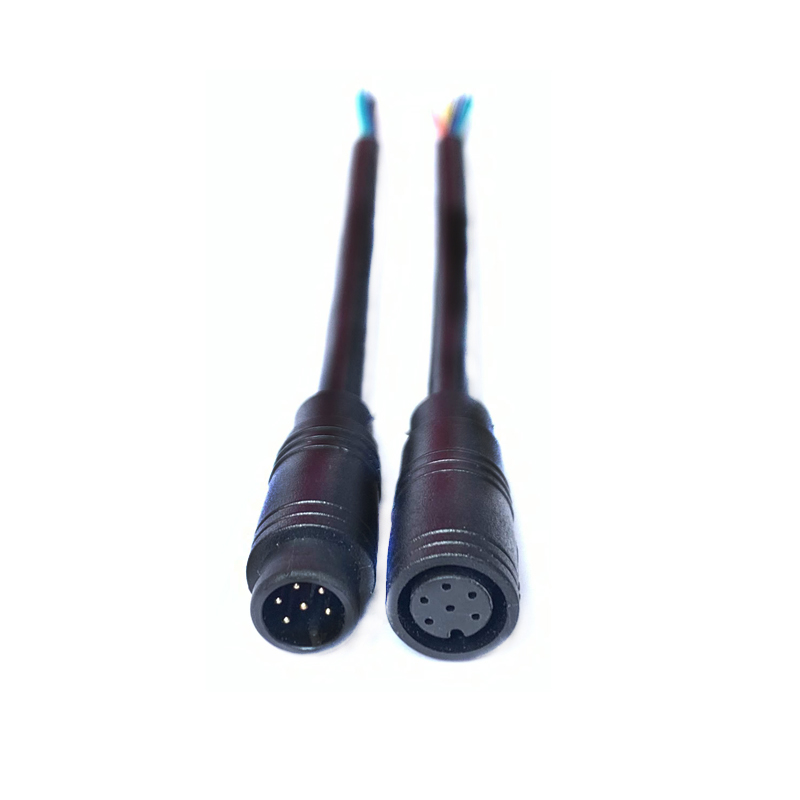

Waterproof butt connectors are critical for creating durable, sealed electrical joints in harsh environments. While M8 and M6 Waterproof Butt Connectors share a circular threaded design, their differences go far beyond their physical dimensions (8mm vs. 6mm). Here’s a detailed comparison of their performance, applications, and why selecting the right size matters for your project.

1. Durability and Environmental Resistance

M8 Waterproof Butt Connectors excel in extreme conditions thanks to their robust build. Their larger size allows for thicker O-rings and deeper threads, providing superior sealing against water, dust, and high-pressure washdowns. They’re commonly rated for temperatures between -40°C to +125°C, making them ideal for outdoor machinery, marine equipment, or industrial settings exposed to vibration and thermal cycling.

M6 Waterproof Butt Connectors, while still IP67/IP69K-rated, are better suited for milder environments. Their smaller O-rings and compact design may degrade faster under prolonged mechanical stress, such as constant vibration in heavy machinery. They’re often used in controlled indoor environments or applications where space constraints outweigh the need for extreme ruggedness.

2. Electrical Performance

Current and Voltage Handling

M8 waterproof butt connectors support higher currents (up to 10–15A) and voltages (30–60V DC). This makes them ideal for powering motors, LED arrays, or solar panels where energy demands are significant.

M6 waterproof butt connectors are designed for lower currents (typically 4–8A) and signal-level voltages (≤24V DC). They’re commonly used for sensors, low-power circuits, or data transmission where excessive current isn’t a concern.

Signal Integrity

The larger contact surfaces in M8 connectors reduce electrical resistance, minimizing heat buildup in high-current applications. M6 connectors, while sufficient for low-power use, may experience voltage drops or overheating if pushed beyond their rated capacity.

3. Application Scenarios

When to Choose M8

Industrial Power Systems: Connecting motor cables, hydraulic pumps, or high-wattage lighting in factories.

Renewable Energy: Solar farm wiring or wind turbine connections exposed to weather extremes.

Heavy-Duty Vehicles: Agricultural, marine, or construction equipment operating in muddy, wet, or dusty conditions.

When to Choose M6

Sensor Networks: Linking temperature, pressure, or proximity sensors in automation systems.

Compact Electronics: Robotics, drones, or medical devices where space is limited.

Low-Voltage Control Panels: Indoor lighting systems or small enclosures requiring minimal power.

4. Installation and Maintenance

Tool Compatibility

M8 connectors require larger crimping tools and torque wrenches (1–2 N·m) for proper installation. Their threads are easier to handle, reducing the risk of cross-threading during assembly. M6 connectors, on the other hand, work well with compact crimpers and can often be hand-tightened (0.5–1 N·m), though their smaller threads are more prone to damage if over-torqued.

Cable Compatibility

M8 connectors accommodate thicker wires (16–12 AWG) and shielded cables, making them versatile for mixed power-signal applications. M6 connectors are optimized for thinner wires (20–18 AWG) and unshielded cables, which simplifies installations in tight spaces but limits their use in high-interference environments.

Longevity and Repairs

The larger components in M8 connectors make them easier to disassemble and reseal, extending their lifespan in demanding settings. M6 connectors, while cost-effective initially, may require more frequent replacement in high-stress applications due to their smaller, more delicate parts.

5. Cost and Practical Trade-offs

M8 connectors are generally 20–40% more expensive than M6 due to their heavier materials and higher performance specs. However, their durability often justifies the cost in industrial or outdoor applications. M6 connectors are a budget-friendly choice for small-scale projects but may fall short in environments requiring long-term reliability.

Choose M8 Waterproof Butt Connectors for high-current, high-vibration, or harsh environments.

Choose M6 Waterproof Butt Connectors for low-power, space-constrained, or cost-sensitive projects.

Both connectors provide reliable waterproof splicing, but their strengths cater to different needs. Always prioritize your system’s electrical demands, environmental exposure, and scalability when selecting between M8 and M6.
